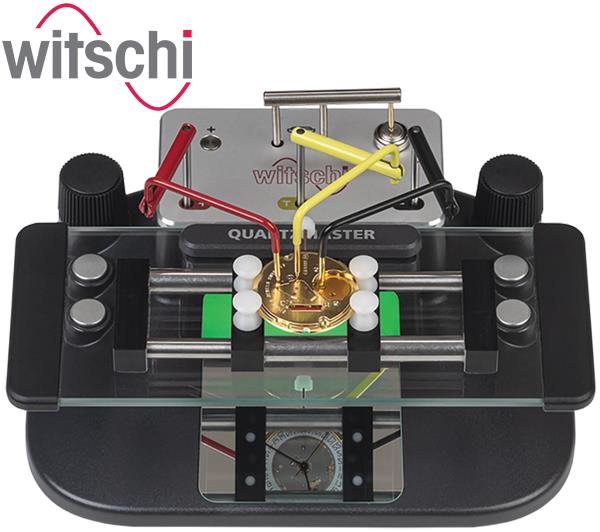

Quartz Testing - QuartzMaster® Pro - Additional Graphical Displays & Pulse generator The expert in the measurement of open quartz watches! QuartzMaster® offers an extensive range of measurement and testing options for the analysis of open quartz watches and the battery.Thanks to its quick, accurate measurement procedures, not only is it indispensable for service and production, but also an important measuring instrument in the watch laboratory. The PRO version offers additional functions: graphic analysis in the direct measurement mode, pulse generator, graphic display of the motor pulses and measurement of the quartz frequency (32 kHz). Compact and ergonomic measuring device for open quartz watches Input 1. Usage - Externally on a Windows PC or tablet 2. Display - Externally on a Windows PC or tablet 3. Languages – (see no.2) Measurements 4. Measurement Principle - Current measurement with variable supply voltage. 5. Watch types - Quartz watches with inhibition step and thermal compensation 6. Measurement Types - Battery measurement, testing in accelerated mode, current measurement, rate deviation with and without inhibition, testing minimal operating voltage and end of life (EOL) voltage, automatic determination of EOL voltage, motor pulse analysis (pulse duration and chop ratio), coil resistance, direct measuring mode (numerical) 7. Measuring Rate and accuracy - Rate variation -300 to +300 s/d (0.1% ± 0.03 s/d), voltage 0 to 3.5V (0.5% ± 10 mV), current 0 to 20 mA (2% ± 2 nA), motor pulse 0 to 100% (± 10%), pulse duration 0 to 2ms, resistance 5 Ohms to 10 MOhms (2% ± 5 Ohms) 8. Measuring Time - Up to 16 mins 9. Reference Time - OCXO (± 0.026 s/d) Results 10, Numerical Result Display - (see No.2) 11, Printing - (see No.2) 12, Results Saving - (see No.2) Device Data 13. Part Nr. – Witschi 26.10PK1 14. Dimensions - 142 x 53 x 104mm (WxHxD) without contact bracket 15. Weight - 430 g 16. Mains Connection - N/A 17. Loud Speaker – (see No.2) 18. Interfaces - USB Type A (Type C device), connection for dummy battery system
- Plug & Play thanks to USB interface
- Battery tester with load resistances of 100 Ohms, 2 kOhms and 2 MOhms
- Easy to operate thanks to configurable rotary knobs and keys on the device
- Suitable for both left and right-handed users
- Dedicated, yellow bracket for the accelerated measurement
- Dummy battery for rapid connection of the watch to the measuring device (optional)
- The lighting for improved readability of the watch hands changes colour depending on the result and device status
- A mirror enables the user to see the hands from the working position
- WiCoTRACE software with automated measurement sequences and direct measurement mode
