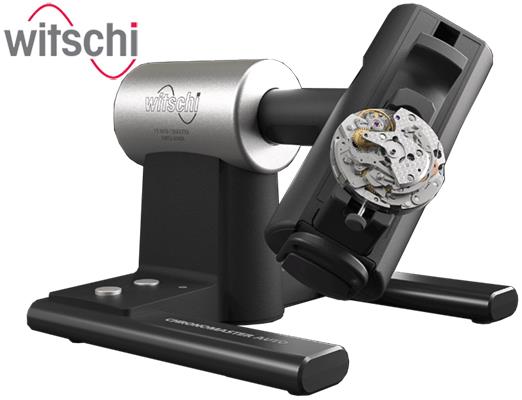

Witschi (Mechanical) ChronoMaster Auto
Mechanical Testing - ChronoMaster Auto - 5 Measurement Types/Display Modes - Automatic Microphone The Witschi Chronomaster Auto is a stand alone testing system (an automatic microphone with built in testing software). It measures the beat noise of mechanical watches & moves to all main test positions and any intermediate positions automatically and precisely. The movement in two axes is smooth and silent. It can measure while in motion and thus reveals new dimensions in the measurement of mechanical watches. Has 5 measurement types/ display modes: Scope (SCO), Vario (VAR), Diagram (DIA), Trace (TRC), Sequence (SEQ) & 12 automatic test positions. Input 1. Usage - 4 Push buttons 2. Display - Eternally on a Windows PC or Tablet 3. Languages – (see no.2) Measurements 4. Measurement Principle - Acoustic measurement of beat noises 5. Channels – N/A 6. Test Positions - 12 recognised test positions 7. Watch types - Mechanical watches with Swiss lever escapement, coaxial escapement and AP escapement 8. Beat Rate - 3'600 to 72'000 A/h, with automatic detection of all current beat numbers 9. Lift Angle - 10° to 90°, manual input 10. Measurement Types - Diagram (DIA), Vario (VAR), Trace (TRC), Sequence (SEQ), Scope (SCO) (see PDF above) 11. Measuring Rate and accuracy - Rate variation -1'000 ... +1'000 ± 0.1 s/d, Amplitude 70 … 360° ± 10. Beat error 0 … 9.9 ms ± 0.1 ms 12. Measuring Time - N/A 13. Reference Time - TCXO (± 0.004 s/d) Results 14. Numerical Result Display - (see no.2) 15. Printing - (see no.2) 16. Results Saving - (see no.2) Device Data 17. Part Nr. – Witschi 13.34PK1 18. Dimensions - 150 x 120 x 150mm 19. Weight - 980g 20. Mains Connection – Via USB cable 21. Loud Speaker - (see no.2) 22. Interfaces - USB Type A 23. Wireless Bluetooth to a tablet PC or iPad 24. Wireless power lasting over 20 hours WiCoTRACE Both the WiCoTRACE central test parameter and result management system and Chronoscope Service are prepared for the ChronoMaster Air and offer the optimal software for every requirement. See PDFs above See video link above
