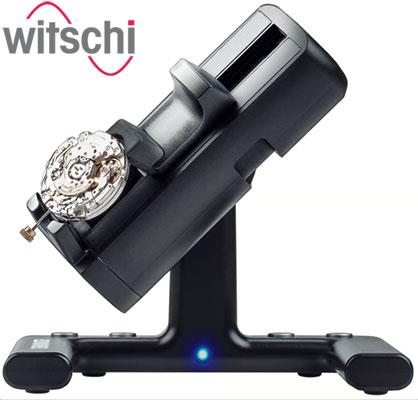

Witschi (Mechanical) ChronoMaster Air
Mechanical Testing - ChronoMaster Pro - 5 Measurement Types/Display Modes - Wireless Bluetooth Connectvitiy! The Witschi ChronoMaster Air system is a stand alone testing system (a manual microphone with built in testing software) that offers the the same testing specification as the Chronomaster Pro, conducting & then displaying the results of professional mechanical watch tests on your existing PC or tablet screen, with wireless connectivity and power! Has 5 measurement types/ display modes: Scope (SCO), Vario (VAR), Diagram (DIA), Trace (TRC), Sequence (SEQ) & 12 recognised test positions. Input 1. Usage - 4 Pushbuttons 2. Display - Eternally on a Windows PC or Tablet 3. Languages – (see no.2) Measurements 4. Measurement Principle - Acoustic measurement of beat noises 5. Channels – N/A 6. Test Positions - 12 recognised test positions 7. Watch types - Mechanical watches with Swiss lever escapement, coaxial escapement and AP escapement 8. Beat Rate - 3'600 to 72'000 A/h, automatic detection of all current beat numbers 9. Lift Angle - 10° to 90°, manual input 10. Measurement Types - Diagram (DIA), Vario (VAR), Trace (TRC), Sequence (SEQ), Scope (SCO) (see PDF above) 11. Measuring Rate and accuracy - Rate variation -1'000 ... +1'000 ± 0.1 s/d, Amplitude 70 … 360° ± 10., Beat error 0 … 9.9 ms ± 0.1 ms 12. Measuring Time - N/A 13. Reference Time - TCXO (± 0.13 s/d) Results 14. Numerical Result Display - (see no.2) 15. Printing - (see no.2) 16. Results Saving - (see no.2) Device Data 17. Part Nr. – Witschi 13.32PK2 18. Dimensions - 130 x 110 x 110mm 19. Weight - 610g 20. Mains Connection – N/A 21. Loud Speaker - (see no.2) 22. Interfaces - USB Type A 23. Wireless Bluetooth to a tablet PC or iPad 24. Wireless power lasting over 20 hours WiCoTRACE Both the WiCoTRACE central test parameter and result management system and Chronoscope Service are prepared for the ChronoMaster Air and offer the optimal software for every requirement. See PDFs above See video link above
