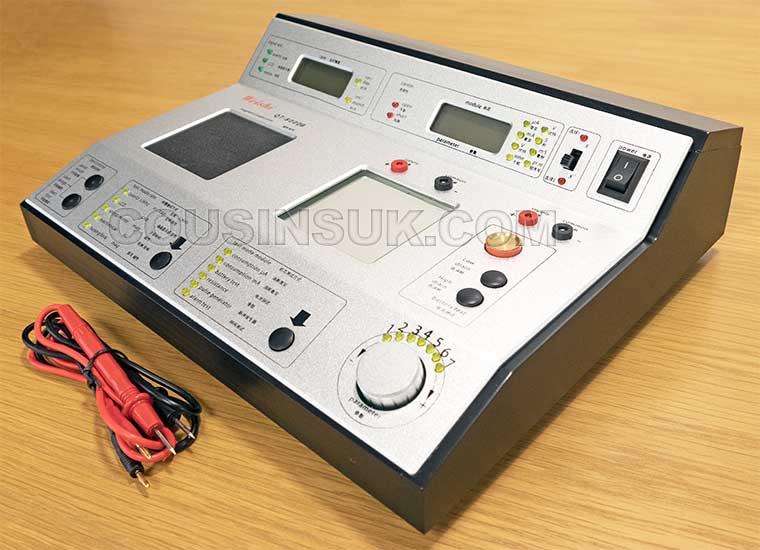

This combined measurement and testing instrument is an all in 1 tester for quartz watch movements
- Measures, the quartz, current, motor pulses & frequency
- Can measure movements with tuning forks
- Provides a fast and efficient operation
- Can be used with printer P15222
- CE certified
- See operation manual PDF above
- Made in China
- Rate measuring range: -9.9s/d to +9.9s/d, -300s/m to +300s/m
- Current measuring range: 100uA, 1mA, 10mA, 20mA.
- Battery voltage measurement rage: 0-5v.
- Supply voltage: adjustable from 0-3.5v in step of 0.05v.
- Resistance measuring range: 1K, 10K, 100K.
- Pulse generator
- Pulse shape: bipolar, pulse width: adjustable from 1-60ms.
- Frequency: 16Hz for pulse < 16ms, 8Hz for pulse >16ms, Voltage: adjustable from 0-3.5v.
- Test signal for Buzzer frequency: 2KHz pulse voltage adjustable from 0-3.5v
- PDF operators manual
- Dual volt, 220 to 240 Volt & 110 volt
