For Mechanical Movements

  • Accurate to +/- 1 second per day
  • 7 inch LCD colour touch screen
  • Up to 1600 dot display
  • Pre programmable testing
  • Automatic microphone included

The latest and greatest in breakthrough TYMC technology

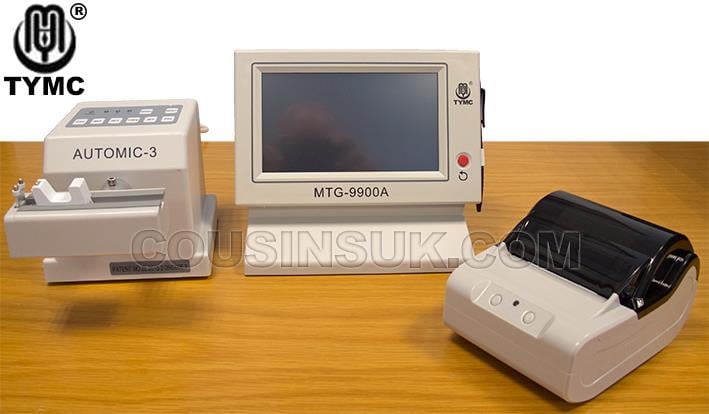

Kit includes:
  • Timegrapher MTG9900A, with touch screen
  • Automatic microphone
  • Automatic heat sensitive printer

Tester specifications:
  • New touch screen, high definition LCD colour display
  • Increased number of testable beats: 1200, 14400, 18000, 19800, 21600, 25200, 28800 & 36000 (can be selected automatically or manually)
  • Accuracy: + / - 1 second per day
  • Amplitude measurement: 90 to 350 degrees ( + / - 3 degrees)
  • Beat error measurement: 0 to 4ms (+ / - 0.1ms)
  • Up to 1600 dot display, giving you maximum testing and accuracy results
  • Can test co-axial watches
  • Digital sound representation is at the same frequency of the watch movement
  • 190 x 190 x 135mm (H x W x D)
  • 150 x 70mm LCD touch screen
  • Replacement printer paper see code T34404
  • Power range 100 to 240 volt (can be used either at 240 volt or 115 volt)

Automatic microphone specifications:
  • 3 speeds
  • 6 positions
  • Will rotate automatically or can be changed by hand
  • 140 x 120 x 200mm (H x W x D)

See documents and video links for further information and demonstration
