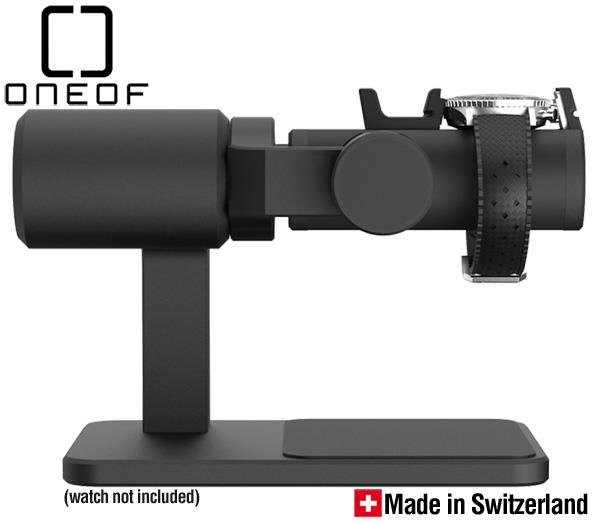

OneOf (Mechanical) Accuracy Motion (Microphone, Automatic)

Mechanical Testing - OneOf Accuracy Motion - 5 Measurement Types/Display Modes - Automatic Microphone

• New & improved display modes (as requested by the top Swiss watch houses)
• 6 display modes (VAR, SCO, TRC, DIA, SEQ, Radar) - see additional images
• All data can be saved local, or server or cloud
• All data can be saved in PDF reduced version (data only) PDF complete (data + graphics + radar) or CSV (Excel, one point per second useful for laboratory analysis)
• Auto calibration and GPS calibration through the internet
• Automatic microphone

The software of ONEOF Motion allows you to program anything you want, the classical 6 positions, plus intermediates, plus for the motion degree by degree (angles) vertical and horizontal. In addition the Motion allows you to measure during slow rotation (very useful for tourbillons). Speed rotation can be adjusted until to use the Motion as a rewinder which is very useful for long tests.Specifications:

• Acoustic measurement
• TCXO, accuracy +/- 0.1 s/d
• 3’200 to 72’000b/h frequency
• 32’400 positions (360° x 90°)
• Zero-backlash positioning
• Programmable motion sequences
• Static and dynamic modes
• Black anodized aluminium body
• Soft-touch coating
• See PDF manual above
• See video links above
• Made in Switzerland

Historically, watchmakers test and adjust the chronometric precision of mechanical movements using acoustic measuring devices in six static positions in order to compensate for the effect of Earth’s gravity on the regulating system.Six static positions are no longer sufficient because it is simply not representative of the actual wear of a watch which evolves in a dynamic three-dimensional environment with complex and varied disturbances. The ONEOF® Accuracy Motion was developed from this observation and from our desire to offer watch brands a tool that is capable of doing more and doing it better by using the latest adapted technology.
