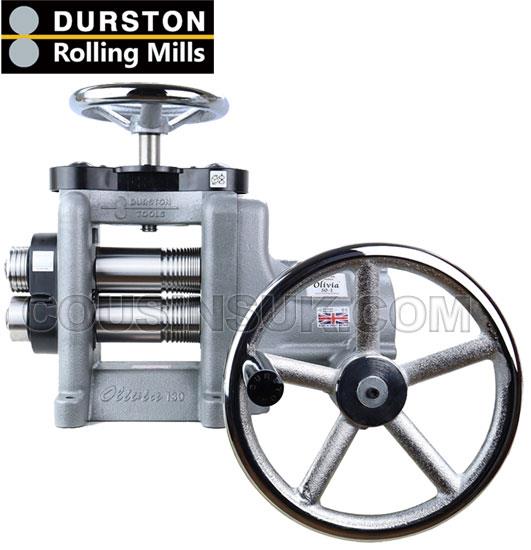

Olivia Mills, Wire

The New Olivi Rolling Mill from Durston Tools, patent pending design and the first of its kind with our new 50-1 gear box making this rolling mill extremely easy to use even when sitting down.


  • 50 to 1 gear box
  • 130mm rollers
  • Solid single cast body
  • Induction hardened rolls
  • Highly calibrated adjustment wheel
  • The very fine calibrated adjustment on the roll gap allows greatest possible control over reductions made in each pass together with ease of turning
  • Special helical drive gears incorporated for maximum efficiency
  • High tensile maintenance free bearings
  • Great for people with bad backs, disabilities, or those who find it difficult to move around or stand up for long periods.
  • Great for shorter people or for those who find long reach arm movement difficult.
  • Increased productivity. Now you can move from the bench to Rolling Mill without standing up and moving across the room.
  • More compact. All one unit without the need for additional turning space.
  • Now you can place your Rolling Mill anywhere along the bench to suit you. No need to place it at the end.
  • Smoother operation for a better-rolled product.
  • Great for Roller printing as more tension can be applied.

Technical summary:

  • Roll Size: 130 x 60mm
  • Width of Sheet: 75mm
  • Sheet capacity (thickness): 6mm
  • Square grooves x11
  • Half round grooves x4 (1.5, 2, 3 & 4mm)
  • Rolls are induction hardened to a Rockwell hardness rating of 64
  • 50 to 1 gear ratio, making turning much easier
  • Dimensions: 220 x 490 x 540mm (without handle)
  • Weight: 70kg
  • Durston Olivia C130
  • Made in UK
Job Ref
1 In Stock
More available via backorder
£1,595.00
EACH
