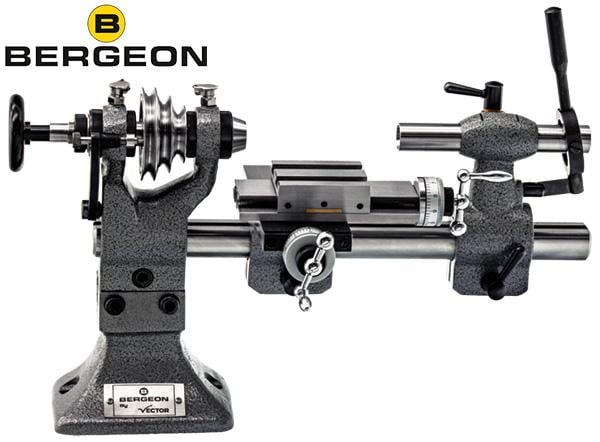

Bergeon Watchmakers Lathe
Bergeon Watchmakers Lathe Supplied:
- Complete watchmakers lather with 48 piece collet set
- Collets have a Ø6mm thread
- Supplied with 2 different size spindles, will take existing Bergeon collets or Vector collets
- Bergeon spindle is the black spindle
- Vector spindles are grey
- Bergeon collets thread: M7, pitch size 0.635mm
- Vector collets thread: M7, pitch size 0.75mm
- See video link above
- See PDF above
- Bergeon 1767
- Headstock with belt drive
- Tailstock with center and drilling support
- Cross slide
- Set of 48 collets, from Ø0.30 to Ø8.00mm)
- 2 hand graver rests (10 and 20 mm)
- Welding plate for belt
- Milling attachment
- Grinding attachment & grinding wheel with spacer ring
- Filing rest (filing roller)
- Sawing plate
- 3 spindles (for Bergeon & Vector collets)
- Workpiece chucks
- 3 brass discs
