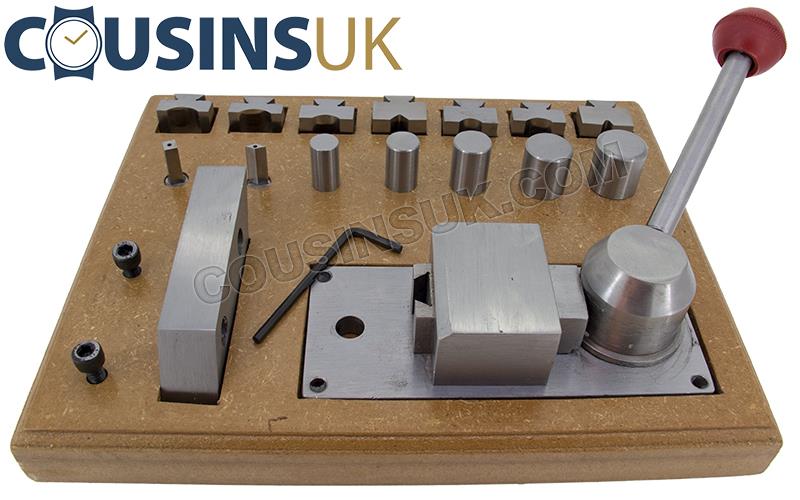

Sheet & Wire Bender
A high quality tool that allows you to bend and shape metal sheet or wire with total ease. How to use: Features: Dimensions:
- Simply remove the tool from the storage base
- Insert desired size & shape dies
- Use the spring loaded cam operated lever to bend your metal to desired shape
- Excellent for creating ring shanks
- 7 sets of dies (5 round, 1 square & 1 rhombus)
- Die sizes: Ø12, 14, 16, 20, 22mm, 90° & 60° & 30° (60° & 30° are the same die)
- Dies are hardened and polished steel
- Round, 90°, 60° & 30° angles all possible
- Tool can be screwed down to base, used loose or inserted in a bench vice using the extra base block provided
- Lever cam system ensures minimal effort is required
- All supplied on wooden bade
- Made in India
- Die height: 17mm
- Bender: 140 x 60 x 40mm
- Wooden base: 260 x 200mm
- Weight: 5Kg
