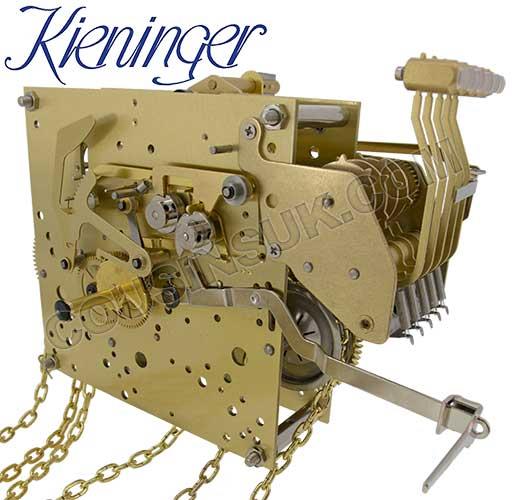

Kieninger SKS12 (SKS Series)

¼ Hour Westminster chime, chain driven movement SKS12 stamped on the plate. Kieninger state that this movement is interchangeable with all SKS movements with the same pendulum length & hand shaft length (a different number after the SKS denotes an amendment to the movement such as different mounting brackets and does not effect the main features of the movement)

• ¼ Hour movement
• Strike: Westminster chime
• Hammers: 5 at the side
• Plate size: 120 x 124mm
• 6 bronze bushes
• Hand shaft length: 47.80mm (plate to hand nut thread)
• Pendulum length: 116cm
• Pendulum length in brackets
• Pendulum length identification is stamped on the movement (pendulums supplied separately)
• Supplied with pendulum leader

See our document download section for Kieninger technical documents
