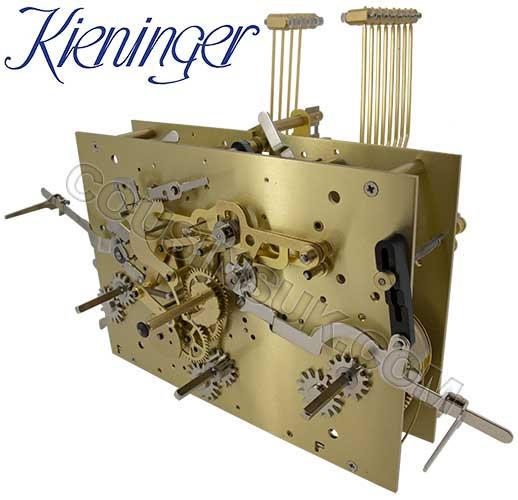

Kieninger MSU13 (MSU Series)

¼ Hour Tripe chime, cable driven clock movement

MSU13 stamped on the plate.

Kieninger state that this movement is interchangeable with all MSU movements with the same pendulum length & hand shaft length (a different number after the MSU denotes an amendment to the movement such as different mounting brackets and does not effect the main features of the movement)

• ¼ Hour movement
• Strike: Triple chime (Westminster, St. Michael & Whittingdon)
• Hammers: 12 above
• Plate size: 142 x 200mm
• 6 bronze bushes
• Hand shaft length: 47.80mm (plate to hand nut thread)
• Pendulum length 116cm
• Pendulum length in brackets
• Pendulum length identification is stamped on the movement (pendulums supplied separately)
• Supplied with pendulum leader

See our document download section for Kieninger technical documents
