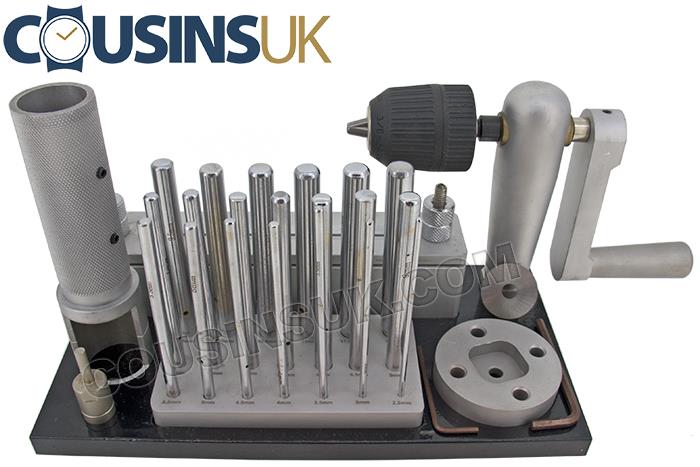

Jump Ring Maker with Pendant Motor Attachments
Jump Ring Maker Excellent for easily producing multiple jump rings, links etc, from round or oval wire. Suitable for use with the Foredom number 30 handpiece & pendant motor (as well as the Dremel equivalent) (pendant motor kit our code K2220CE, number 30 handpieces our codes FD30 & FD30SJ) How to use: 1. Place the preferred mandrel size into the chuck and tighten, locking the mandrel in place ready to make your coil of wire. 2. Keeping the wire pulled tight, use the handle to rotate the mandrel creating a tight coil of wire around your mandrel. 3. Remove the coil from the mandrel and place in the coil holder, twisting the nuts to press the sprung loaded top down, holding your now coiled wire firmly in place. 4. Insert your number 30 hand piece (not supplied) into the protective collar. Then attach the circular saw blade using the cutter holder attachment provided. 5. Lubricate the saw blade using our burr cut lube (B4181) 6. Cut along the slit, cutting your coil into your simple and easy to make jump rings Kit contains: Made in India
- 20 mandrels, from Ø2.5 to Ø12mm (sizes carved on wooden base)
- Rotation stand and lever (can be screwed to base, screws not supplied)
- Spring loaded coil holder
- Protective hand piece collar (for no.30 hand piece, supplied separately)
- Saw cutter blade
- Attachment for saw cutter blade
- Supplied on wooden base with labelled compartments
