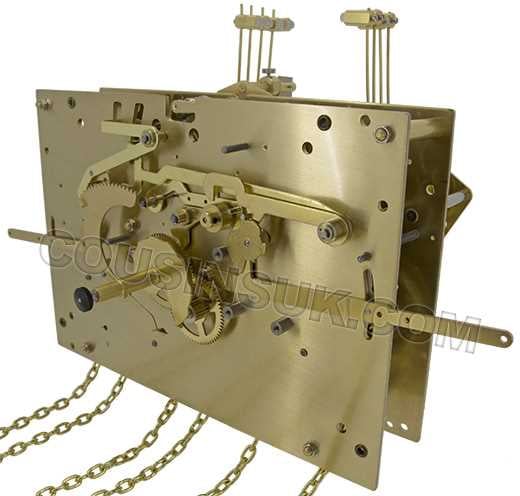

Hermle 471.050S (Seconds)

Hermle 471.050S8 day Westminster chime, weight driven clock movement with seconds

• 8 day
• Strike: Westminster chime
• Hammers: 8 behind
• Plate size: 152 x 200
• Anchor escapement, automatic beat
• Length A: 55.5mm (Plate to hand nut thread, see web diagram)
• Length B: 48mm (Shaft length, see web diagram)
• Mounting depth: 200mm (tip of handshaft to back of movement)
• Weight driven
• Pendulum length identification is stamped on the movement (pendulums supplied separately)
• Pendulum length in brackets
• Seconds feature

Hermle state that in this combination, “S” means seconds featureAvailable separately:

• 3.5Kg weight: H38196
• 4.5Kg weight: H38197
• Weight shell: H38198
• Gong: G46249
• Moon phase transmission wheel: H52227 (required if using movement with moon phase dial)
