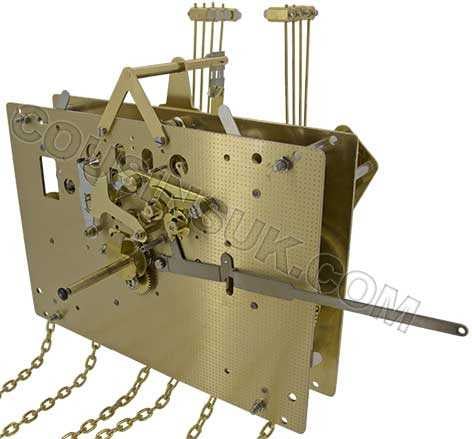

Hermle 461.053DSK / 461.053HS (Seconds)
Hermle 461.053DSK
8 day Westminster, weight driven clock movement with seconds feature & a high bridge
Hermle state that in this combination, âSâ means seconds feature and "D" & âKâ are engineering codes and are irrelevant
Available separately:
8 day Westminster, weight driven clock movement with seconds feature & a high bridge
- 8 day
- Strike: Westminster chime
- Hammers: 8 behind
- Plate size: 140 x 200mm
- Anchor escapement, dead beat
- Length A: 53.2mm (Plate to hand nut thread, see web diagram)
- Length B: 48.5mm (Shaft length, see web diagram)
- Mounting depth: 190mm (tip of handshaft to back of movement)
- Weight driven
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
- Seconds feature
- Supplied with chime and strike shut off (silence) lever
- Supplied with pendulum leader (our code L9604)
Hermle state that in this combination, âSâ means seconds feature and "D" & âKâ are engineering codes and are irrelevant
Available separately:
- 2.5Kg weight: W46182
- 3.5Kg weight: H38196
- Weight shell: H38198
- Gong: G46249
- Moon phase transmission wheel: H52226 (required if using movement with moon phase dial)
