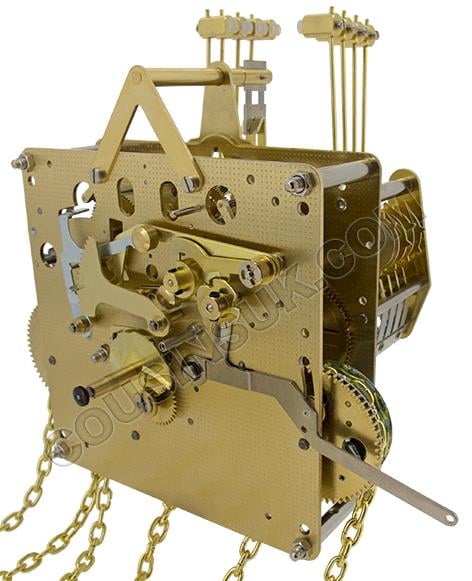

Hermle 451.050H (High Bridge)
Hermle 451.050H 8 day Westminster chime, weight driven clock movement with high bridge Hermle state that in this combination, “H” means high bridge Available separately:
- 8 day
- Strike: Westminster chime
- Hammers: Two sets of 4 behind
- Plate size: 120 x 120mm
- Anchor escapement, automatic beat
- Length A: 33.2mm (Plate to hand nut thread, see web diagram)
- Length B: 28.5mm (Shaft length, see web diagram)
- Mounting depth: 155mm (tip of handshaft to back of movement)
- Weight driven
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
- High bridge
- Supplied with chime and strike shut off (silence) lever
- Supplied with pendulum leader (our code L9604)
- 2Kg weight: HERE00502700
- 2.89Kg weight: HERE00514930
- Weight shell: H42149
- Gong: G46248
- Moon phase transmission wheel: H52226 (required if using movement with moon phase dial)
- Mounting screws x 2, Hermle E006.00980P9
