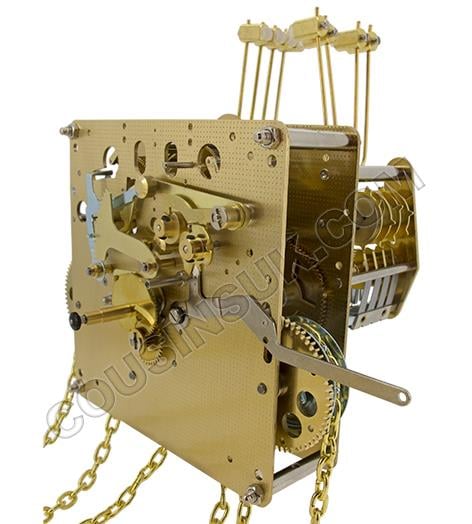

Hermle 451.050 (Dead Beat)

Hermle 451.050

Hermle movements with pendulum lengths 75cm or greater are no longer supplied with:

• Dead Beat - due to the size of the pendulum
• Low Bridge - due to the weight of the pendulum

(alternatives are automatic beat and high bridge movements)

8 day Westminster chime, weight driven clock movement

• 8 day
• Strike: Westminster chime
• Hammers: Two sets of 4 behind
• Plate size: 120 x 120mm
• Anchor escapement, dead beat
• Length A: 33.2mm (Plate to hand nut thread, see web diagram)
• Length B: 28.5mm (Shaft length, see web diagram)
• Mounting depth: 155mm (tip of handshaft to back of movement)
• Weight driven
• Pendulum length identification is stamped on the movement (pendulums supplied separately)
• Pendulum length in brackets

Available separately:

• 2Kg weight: HERE00502700
• 2.89Kg weight: HERE00514930
• Weight shell: H42149
• Gong: G46248
• Moon phase transmission wheel: H52226 (required if using movement with moon phase dial)
