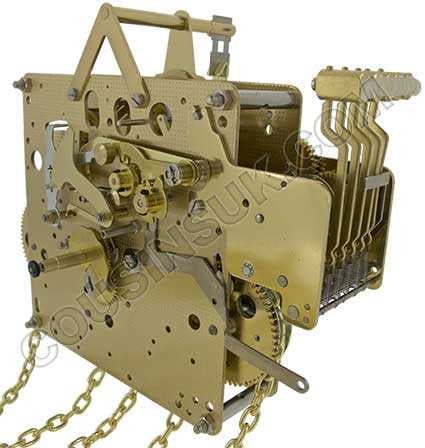

Hermle 451.030H (High Bridge)

Hermle 451.030H8 day Westminster chime, weight driven clock movement

• 8 day
• Strike: Westminster chime
• Hammers: 5 at the side
• Plate size: 120 x 120mm
• Anchor escapement, automatic beat
• Length A: 33.2mm (Plate to hand nut thread, see web diagram)
• Length B: 28.5mm (Shaft length, see web diagram)
• Mounting depth: 110mm (tip of handshaft to back of movement)
• Weight driven
• Pendulum length identification is stamped on the movement (pendulums supplied separately)
• Pendulum length in brackets
• Supplied with chime and strike shut off (silence) lever
• Supplied with pendulum leader (our code L9604)

Hermle state that in this combination, “H” means high bridgeAvailable separately:

• 2Kg weight: HERE00502700 x 2
• 2.89Kg weight: HERE00514930 x 1
• Weight shell: H42149
• Gong: G46244
• Moon phase transmission wheel: H52226 (required if using movement with moon phase dial)
