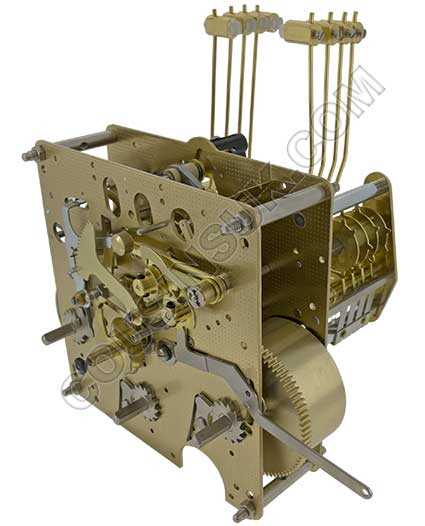

Hermle 351.053

Hermle 351.0538 day Westminster chime, key wound clock movement, 22.9mm shaft

• 8 day
• Strike: Westminster
• Hammers: 8 behind
• Plate size: 120 x 120mm
• Anchor escapement, automatic beat
• Length A: 53.2mm (Plate to hand nut thread, see web diagram)
• Length B: 48.5mm (Shaft length, see web diagram)
• Mounting depth: 145mm (tip of handshaft to back of movement)
• WH5: Winding hole configuration (see web diagram)
• Pendulum length identification is stamped on the movement (pendulums supplied separately)
• Pendulum length in brackets

Available Separately:

• Gong: H28887
