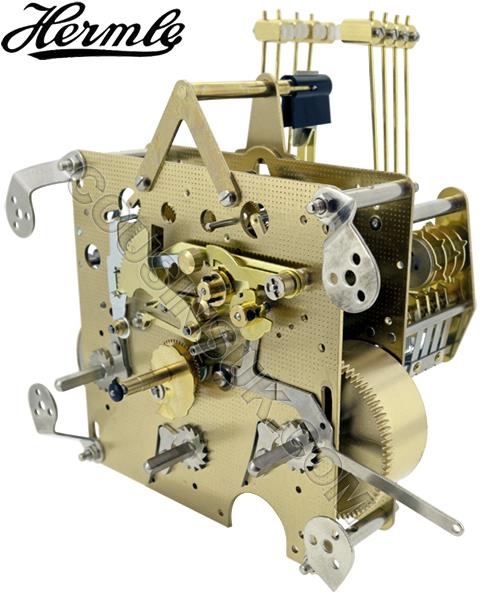

Hermle 351.050H
Hermle 351-050H
8 day Westminster chime, key wound clock movement
Available Separately:
8 day Westminster chime, key wound clock movement
- 8 day
- Strike: Westminster
- Hammers: 8 behind
- Plate size: 120 x 120mm
- Anchor escapement, automatic beat
- Length A: 33.2mm (Plate to hand nut thread, see web diagram)
- Length B: 28.5mm (Shaft length, see web diagram)
- Mounting depth: 145mm (tip of handshaft to back of movement)
- WH5: Winding hole configuration (see web diagram)
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
- Supplied with chime and strike shut off (silence) lever
- Supplied with pendulum leader (our code L9603)
Available Separately:
- Gong: H28887
