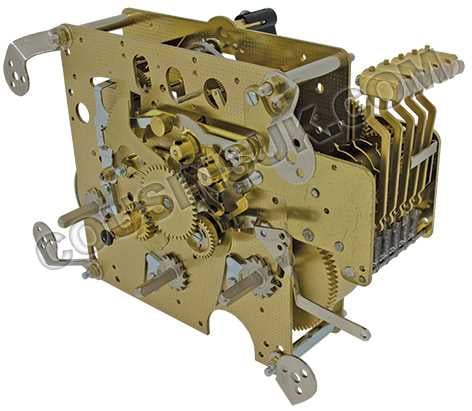

Hermle 351.030

Hermle 351.0308 day Westminster chime, key wound clock movement

• 8 day
• Strike: Westminster
• Hammers: 5 at the side
• Plate size: 120 x 120mm
• Anchor escapement, automatic beat
• Length A: 33.2mm (Plate to hand nut thread, see web diagram)
• Length B: 28.5mm (Shaft length, see web diagram)
• Mounting depth: 110mm (tip of handshaft to back of movement)
• WH5: Winding hole configuration (see web diagram)
• Pendulum length identification is stamped on the movement (pendulums supplied separately)
• Pendulum length in brackets
• Supplied with chime and strike shut off (silence) lever
• Supplied with pendulum leader (our code L9603)

Available Separately:

• Gong: G46244
