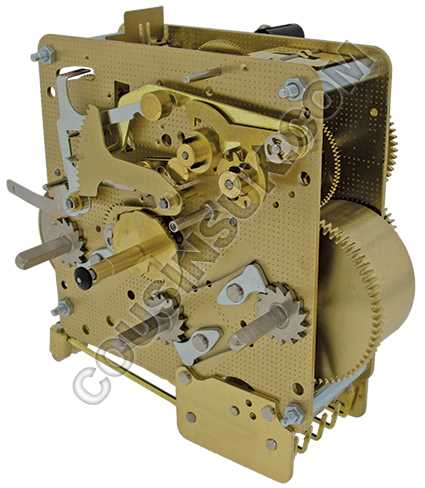

Hermle 341.020 (A)

Hermle 341.020 (341.020A)

8 day Westminster chime, key wound clock movement

• 8 day
• Strike: Westminster
• Hammers: 5 below
• Plate size: 100 x 100mm
• Anchor escapement, automatic beat
• Length A: 33.2mm (Plate to hand nut thread, see web diagram)
• Length B: 28.5mm (Shaft length, see web diagram)
• Mounting depth: 109mm (tip of handshaft to back of movement)
• WH1: Winding hole configuration (see web diagram)
• Pendulum length is stamped on the movement (Pendulums supplied separately)
• Pendulum length in brackets
• Supplied with pendulum leader (our code L9603)

Hermle state that the "A" after a calibre is an engineering code and is irrelevant

Available Separately:

• Gong: H28885
