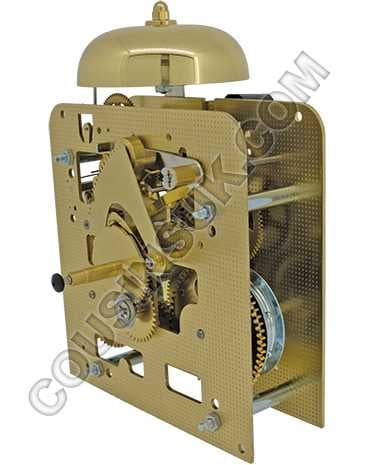

Hermle 271.080
Hermle 271.080
8 day bim bam bell, weight driven clock movement
8 day bim bam bell, weight driven clock movement
- 8 day
- Strike: Bim Bam
- Hammers: 1 at the side
- Plate size: 104 x 108mm
- Anchor escapement, automatic beat
- Length A: 33.2mm (Plate to hand nut thread, see web diagram)
- Length B: 28.5mm (Shaft length, see web diagram)
- Mounting depth: 112mm (tip of handshaft to back of movement)
- Weight driven
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
