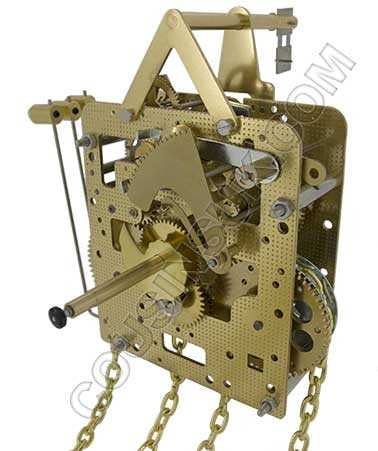

Hermle 241.033H (High Bridge)

Hermle 241.033H


8 day bim bam gong, weight driven clock movement, 48.5mm shaft


  • 8 day
  • Strike: Bim Bam
  • Hammers: 3 at the side
  • Plate size: 85 x 98mm
  • Anchor escapement, automatic beat
  • Length A: 53.2mm (Plate to hand nut thread, see web diagram)
  • Length B: 48.5mm (Shaft length, see web diagram)
  • Mounting depth: 120mm (tip of handshaft to back of movement)
  • Weight driven
  • Pendulum length identification is stamped on the movement (pendulums supplied separately)
  • Pendulum length in brackets
  • Supplied with pendulum leader (our code L9604)

Hermle state that in this combination, “H” means high bridge


Available separately:

  • 2Kg weight: HERE00502700
  • Weight shell: H46184
  • Gong: G46240
Hermle 241.033H (High Bridge)
All Items
  • [1] Item
Job Ref
2 In Stock
More available via backorder
£185.00
EACH
