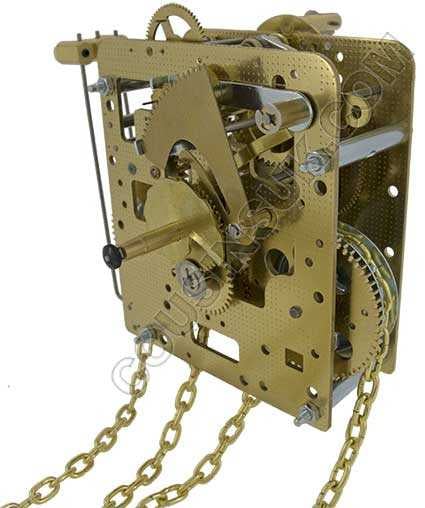

Hermle 241.030
Hermle 241.030 8 day bim bam gong, weight driven clock movement Available separately:
- 8 day
- Strike: Bim Bam
- Hammers: 3 at the side
- Plate size: 85 x 98mm
- Anchor escapement, automatic beat
- Length A: 33.2mm (Plate to hand nut thread, see web diagram)
- Length B: 28.5mm (Shaft length, see web diagram)
- Mounting depth: 96mm (tip of handshaft to back of movement)
- Weight driven
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
- Supplied with pendulum leader (our code L9603)
- 2Kg weight: HERE00502700
- Weight shell: H46184
- Gong: G46240
