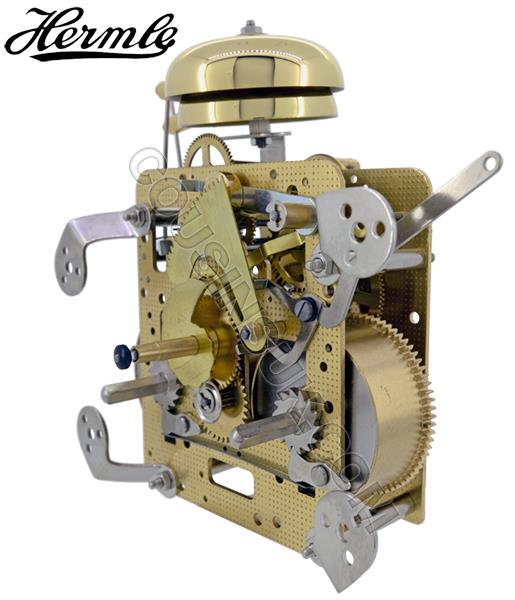

Hermle 141.080 (2 Bells)
Hermle 141.080
14 day bell, key wound clock movement
14 day bell, key wound clock movement
- 14 day
- Hammers: 2 at the side
- Front or back pendulum (see images)
- Plate size: 85 x 98mm
- Anchor escapement, automatic beat
- Length A: 33.2mm (Plate to hand nut thread, see web diagram)
- Length B: 28.5mm (Shaft length, see web diagram)
- Mounting depth: 92mm (tip of handshaft to back of movement)
- WH3: Winding hole configuration (see web diagram)
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
