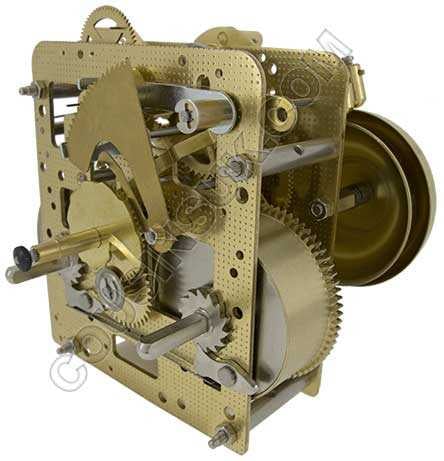

Hermle 141.070
Hermle 141.070
14 day bim bam bell, key wound clock movement
For the coil gong (single hammer) version of this movement see calibre 141.040
14 day bim bam bell, key wound clock movement
- 14 day
- Strike: Bim Bam
- Hammers: 2 behind
- Plate size: 85 x 98mm
- Anchor escapement, automatic beat
- Length A: 33.2mm (Plate to hand nut thread, see web diagram)
- Length B: 28.5mm (Shaft length, see web diagram)
- Mounting depth: 103mm (tip of handshaft to back of movement)
- WH3: Winding hole configuration (see web diagram)
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
- Supplied with pendulum leader (our code L9603)
For the coil gong (single hammer) version of this movement see calibre 141.040
