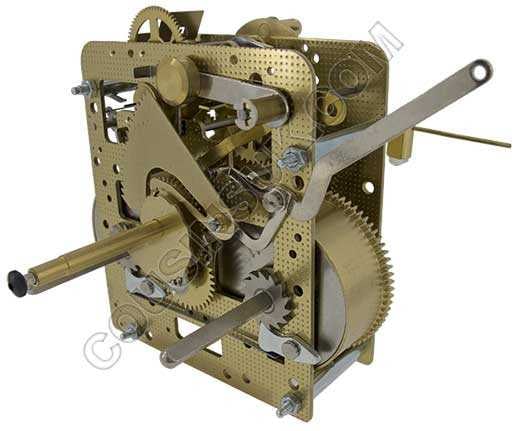

Hermle 141.043
Hermle 141.043
14 day bim bam coil gong, key wound clock movement, 48.5mm shaft
14 day bim bam coil gong, key wound clock movement, 48.5mm shaft
- 14 day
- Strike: Bim Bam
- Hammers: 1 behind
- Plate size: 85 x 98mm
- Anchor escapement, automatic beat
- Length A: 53.2mm (Plate to hand nut thread, see web diagram)
- Length B: 48.5mm (Shaft length, see web diagram)
- Mounting depth: 125mm (tip of handshaft to back of movement)
- WH3: Winding hole configuration (see web diagram)
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
- Supplied with pendulum leader (our code L9603)
