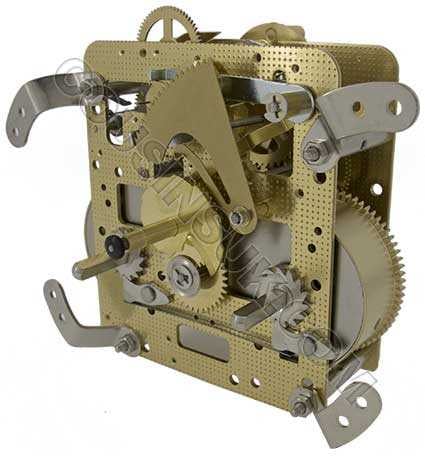

Hermle 141.040
Hermle 141.040
14 day bim bam coil gong, key wound clock movement
Available Separately:
For the bell (double hammer) version of this movement see calibre 141.070
14 day bim bam coil gong, key wound clock movement
- 14 day
- Strike: Bim Bam
- Hammers: 1 behind
- Plate size: 85 x 98mm
- Anchor escapement, automatic beat
- Length A: 33.2mm (Plate to hand nut thread, see web diagram)
- Length B: 28.5mm (Shaft length, see web diagram)
- Mounting depth: 105mm (tip of handshaft to back of movement)
- WH3: Winding hole configuration (see web diagram)
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
- Supplied with pendulum leader (our code L9603)
Available Separately:
- Gong: G46238
For the bell (double hammer) version of this movement see calibre 141.070
