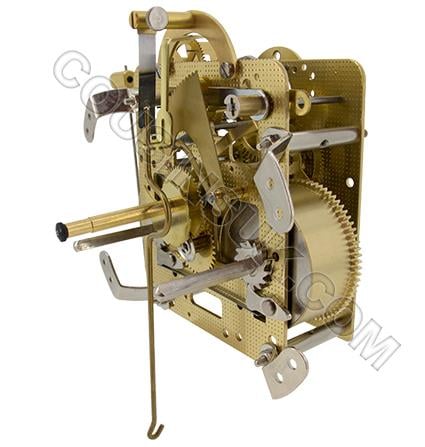

Hermle 141.033 (Front Pendulum)
Hermle 141.033
14 day bim bam gong, key wound clock movement, 48.5mm shaft, pendulum at the front
14 day bim bam gong, key wound clock movement, 48.5mm shaft, pendulum at the front
- 14 day
- Strike: Bim Bam
- Hammers: 3 at the side
- Plate size: 85 x 98mm
- Anchor escapement, automatic beat
- Length A: 53.2mm (Plate to hand nut thread, see web diagram)
- Length B: 48.5mm (Shaft length, see web diagram)
- Mounting depth: 108mm (tip of handshaft to back of movement)
- WH3: Winding hole configuration (see web diagram)
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Front or back pendulum
- Pendulum length in brackets
- Supplied with pendulum leader (our code L9603)
