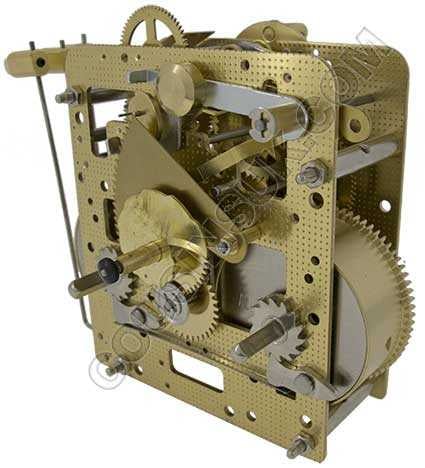

Hermle 141.031
Hermle 141.031
14 day bim bam gong, key wound clock movement, 22.9mm shaft
14 day bim bam gong, key wound clock movement, 22.9mm shaft
- 14 day
- Strike: Bim Bam
- Hammers: 3 at the side
- Plate size: 85 x 98mm
- Anchor escapement, automatic beat
- Length A: 27.6mm (Plate to hand nut thread, see web diagram)
- Length B: 22.9mm (Shaft length, see web diagram)
- Mounting depth: 95mm (tip of handshaft to back of movement)
- WH3: Winding hole configuration (see web diagram)
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
- Supplied with pendulum leader (our code L9603)
