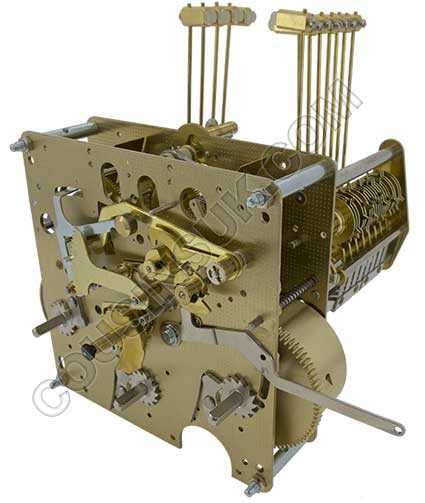

Hermle 1051.051
Hermle 1051.051
8 day triple chime, key wound clock movement, 22.9mm shaft
Available Separately:
8 day triple chime, key wound clock movement, 22.9mm shaft
- 8 day
- Strike: Triple chime
- Hammers: 12 behind
- Plate size: 120 x 120mm
- Anchor escapement, automatic beat
- Length A: 27.6mm (Plate to hand nut thread, see web diagram)
- Length B: 22.9mm (Shaft length, see web diagram)
- Mounting depth: 110mm (tip of handshaft to back of movement)
- WH5: Winding hole configuration (see web diagram)
- Pendulum length identification is stamped on the movement (pendulums supplied separately)
- Pendulum length in brackets
- Supplied with chime and strike shut off (silence) lever
- Supplied with pendulum leader (our code L9603)
Available Separately:
- Gong: H28888
