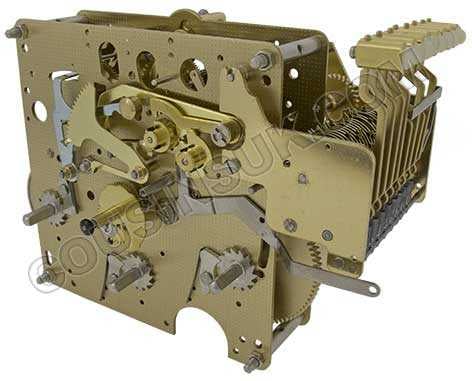

Hermle 1051.031 (A)

Hermle 1051.031 (1051.031A)


8 day triple chime, key wound clock movement, 22.9mm shaft


  • 8 day
  • Strike: Triple chime
  • Hammers: 8 at the side
  • Plate size: 120 x 120mm
  • Anchor escapement, automatic beat
  • Length A: 27.6mm (Plate to hand nut thread, see web diagram)
  • Length B: 22.9mm (Shaft length, see web diagram)
  • Mounting depth: 105mm (tip of handshaft to back of movement)
  • WH5: Winding hole configuration (see web diagram)
  • Pendulum length identification is stamped on the movement (pendulums supplied separately)
  • Pendulum length in brackets
  • Supplied with chime and strike shut off (silence) lever
  • Supplied with pendulum leader (our code L9604)

Hermle state that the "A" after a calibre is an engineering code and is irrelevant


Available Separately:

  • Gong: G46250
