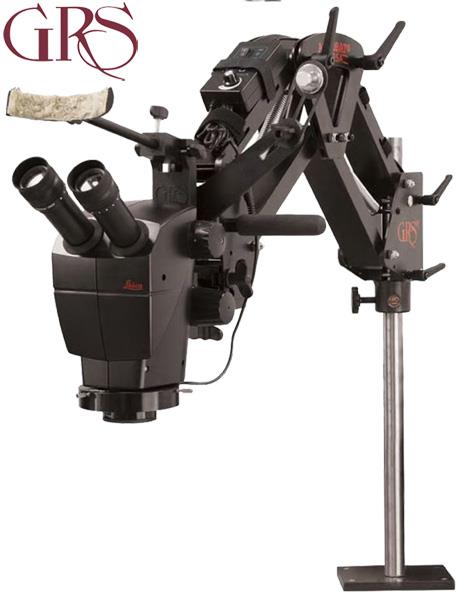

GRS Microscope
The latest & most comprehensive microscope package from GRS. Long trusted by hand engravers and jewellers, the GRS Acrobat® stand has been redesigned with a sleek form particularly suited to the high-powered Leica® A60 microscope (included). Complete package includes: Leica® A60 microscope optical data:
- The new Acrobat Versa stand has a mounted, robust frame that provides simple smooth movement for easy adjustments and allows the ability to rotate if required.
- Specifically designed for the high-powered Leica A60 Microscope, the stand has a 45 degree tilt which ensures accurate microscope positioning and an adjustable, lined head rest enabling you to move with the microscope in total comfort
- Ergonomic handles make height adjustments simple and help towards a more efficient working experience
- A magnetic document holder adds a handy reference tool for hands-free visual when following designs, offering a streamlined working experience
- See video link above
- GRS 003-657-220
- Acrobat Versa stand
- Leica A60 microscope
- A60 0.63X objective lens
- Objective lens adapter
- Optia LED light and control
- Mounting base
- Post
- Headrest
- Primary document holder
- Dust cover
- Optical system: Greenough, with Leica FustionOptics™
- Convergence angle: 10° degrees
- Zoom factor: 6:1
- Zoom range: 5x to 30x (suitable for both large surface overview and detailed observation.)
- Working distance: 122mm (without illumination)
- Viewing angle: 38°degrees
- Max. depth of field: 13.6mm
- Eyepieces: 10×/23 B, adjustable, suitable for glasses wearers
- Interpupillary distance: 52 – 76 mm
- LED ring illuminator colour temperature: 5,600 K
- The A60 0.63X Objective lens gives a zoom range of 3.1x to 18.9x, a 155mm working distance and 70mm - 11.7mm field of view
- The Leica A60 Objective Lens Adapter increases the zoom ratio from the standard 5:1 to 6:1 allowing you to get the full value of zoom
