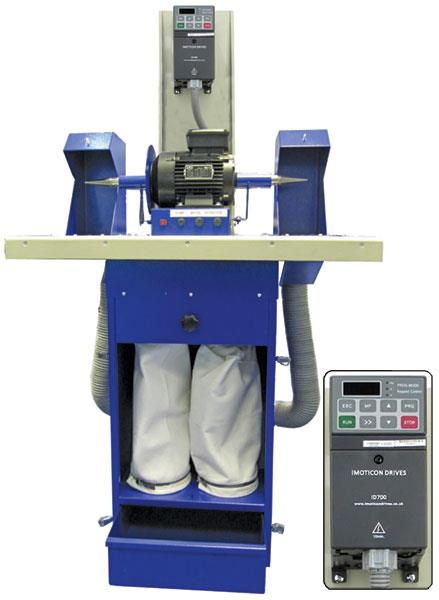

Double Spindle (Variable or Single Speed), Polimax 1

Single or Variable Speed Twin Polishing Motors

• Extractor
• On Base
• Continuous ‘all day’ operation rated
• Variable speed 0 to 2850rpm
• Made in Great Britain

Convenient self-contained polishing bench, for a clean and safe environment when polishing and grinding metals.Specifications:

• 1.5hp fan cooled polishing motor inc. tapered spindles
• Adjustable cowls to suit up to 200mm diameter wheels
• Powder coated steel case for long life
• Catchment tray and bag shaker
• Filtered air can be re-circulated or vented outside
• 10 amps at 220/240 volts AC
• Extractor motor: 0.5hp, 200 cubic feet per minute
• Polishing motor: 1.5hp, 2850 RPM
• Solid metal safety disc to prevent dust being drawn into the motor
• Clear, persepx guards to protect from potentially dangerous debris

Base:

• Height floor to work top 900mm
• Maximum width 900mm
• Maximum front to rear 680mm
• Maximum wheel/mop size 200mm
• Weight 50 kgs.

Available:

• Filter Bag (code P12725)
• Replacement single speed motor (code P33424)
• Replacement variable speed motor (code P39970)
• Left Hand Spindle (code S34917)
• Right Hand Spindle (code S34916)
• Left Hand Wheel Mandrel (code S34691) - ideal to mount on your abrasives finishing wheels.*

*Please note our range of Artifex wheels will fit direct onto spindle S34691. Other wheels like Manhattan, silicon & felts etc. will have to be altered by drilling the centre bore size required.
