24 Hour Dial, UTS

Non Returnable - You Must be a Trade Professional to Purchase These Items

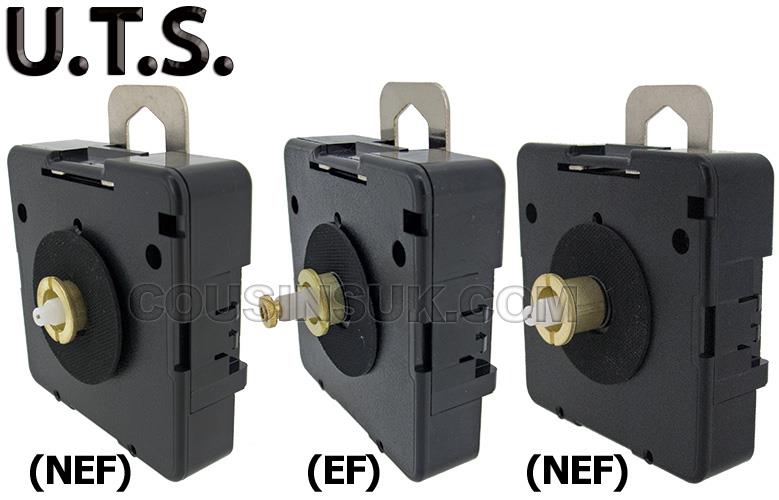

Clock Movement - To be used in conjunction with a 24 Hour Dial


  • 24 Hour Quartz UTS Movement
  • For use with a 24 hour dial, see from our code D56442
  • Euro Fitting (EF) or Non Euro Fitting (NEF) hand shafts
  • Hi Torque (8mm shaft not high torque)
  • Uses LR6 battery
  • Complete with Fittings
  • Can take minute hands up to 400mm long, weighing up to 20 grams
  • Can take centre seconds hands up to 125mm long, weighing up to 1.2 grams
  • Step seconds

Dimensions:

  • 57 x 57 x 17mm
  • Shaft = From movement front to centre shaft tip

Euro Fitting (EF) Hand Collet Dimensions:

  • Minute: 3.5 x 2.8mm
  • Hour: Ø5.00mm

Non Euro Fitting (NEF) Hand Collet Dimensions:

  • Minute: Ø3.50mm
  • Hour: Ø5.00mm (Ø5.50mm NEF hands will require pinching to fit)

When a 24 hour movement is placed on a 12 hour dial and the hands set at 12, in one hour the hour hand will only move half way between 12 and 1. Subsequently on a 24 hour dial, the hour hand will have reached 1.

All Items
  • [3] Items
Job Ref
46 In Stock
Discounts
£3.75
EACH
Info

Job Ref
16mm (EF) Shaft 24 Hour Movement
J37161
|
EACH
Best Seller
97 In Stock
Discounts
£3.70
EACH
Info

Job Ref
144 In Stock
Discounts
£3.75
EACH
Info


Is My Item In Stock?
