22.5 x 35.6mm (Gorge No.22)

Add to Favourites

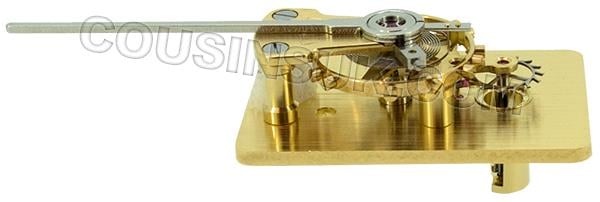

Gorge Swiss Made Platform Escapement

Plate Size: 22.5mm x 35.6mm

Dimensions:
  • Width 22.5mm
  • Length 35.6mm
  • Overall height 19.25mm (distance from the top of the balance to the end of the bracket holding the pinion)
  • 8 Leaf Escape Wheel
  • Alt. Frequency 18000 Alt/h
  • Escape Wheel Drop 8.75mm (distance from the plate to the end of the bracket holding the pinion)
  • Distance between the escape wheel centre and the end of the plate 7mm
  • Escape Wheel Teeth Module 0.25
22.5 x 35.6mm (Gorge No.22)
Bulk Discounts Available
No.22 Gorge Platform
P52484
30 In Stock
£105.00
EACH
Qty
Bulk Discounts
