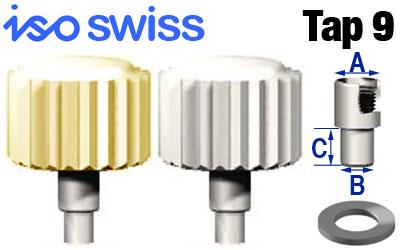

Ø5.5mm (A = 3.0mm)

ISO Swiss - Internal Threaded Tube - Style D

• Crown Head: Ø5.50mm
• Internal Tube Thread: Ø2.5mm
• External Tube for Crown: Ø3.0mm

Crown Dimensions: Tap x Crown Ø x Tube Thread x (Crown Depth 3.90mm)

• Crowns for a Internal Threaded Pendant Tube
• Stainless Steel (SS) & Gold Plated (GP)
• Crown and tube supplied separately
• Water Depth Rating = 200M

Tube Dimensions:

• (A) = Outside Tube Diameter
• (B) = Outside Tube Diameter
• (C) = Tube to Case " Push In" Section

Gaskets

• Crown (Flat Ring) for Style D = CrowngasketD
