Ø5.0 to 6.5mm (A = 4.5mm)

ISO Swiss - External Threaded Tube - Style F

• Crown Head: Ø5.00 to 6.50mm
• Tube Thread: Ø4.5 x 0.25mm

Crown Dimensions: Tap x Crown Ø x Tube Thread x (Crown Depth 3.85mm)

• Crowns for External Threaded Pendant Tube
• Stainless Steel (SS) & Gold Plated (GP)
• Crown and tube supplied separately (gaskets included)
• Water depth rating: 200 metres (20 atmospheres ATM)

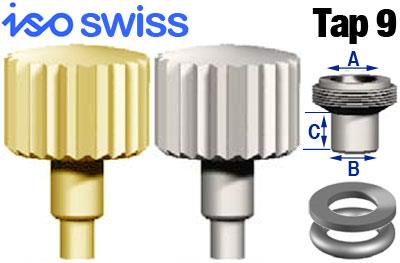

Tube Dimensions:

• A) = Crown Thread Diameter
• (B) = Tube to Case Diameter (not threaded)
• (C) = Tube to Case " Push In" Section

Gaskets

• Tube (O-Ring) for Style F = C8422
