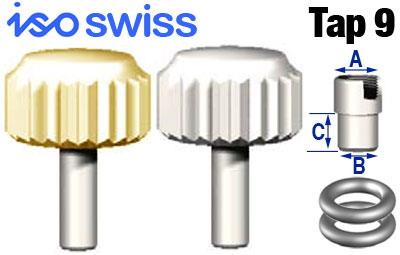

Ø4.0 to 5.5mm (A = 2.6mm)

ISO Swiss - Internal Threaded Tube - Style B

• Crown Head: Ø4.00 & 5.50mm
• Internal Tube Thread: Ø2.0mm
• External Tube for Crown: Ø2.6mm

Crown Dimensions: Tap x Crown Ø x Tube for Crown x (Crown Depth 3.00mm)

• Crowns for a Internal Threaded Pendant Tube
• Stainless Steel (SS) & Gold Plated (GP)
• Crown and tube supplied separately
• Water Depth Rating = 200M

Tube Dimensions:

• (A) = Outside Tube Diameter
• (B) = Outside Tube Diameter
• (C) = Tube to Case " Push In" Section

Gaskets

• Crown (O-Ring) for Style B = CrowngasketB
• Tube (O-Ring) for Style B = G30806
