Hermle Movement Complete

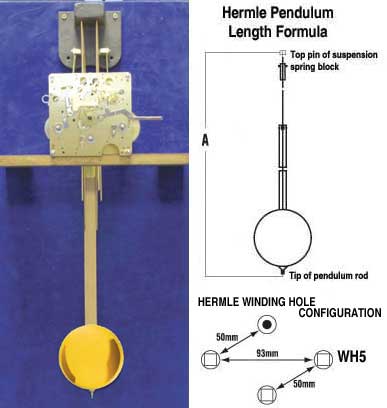

See PDF Document downloads for Hermle Pendulum Length Formulas & Winding Hole Configurations

• Hermle Clock Movement Service Manual: Item Number H31543

View Full Description

Documents available to download

Hermle Movement Complete products

Click on the headings below to show/hide available product information and display available product stock items:

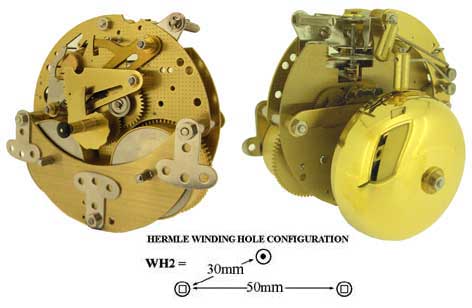

Clock Movement - Hermle 130.070 Bell Strike MechanicalView Product

• 8 day Bim Bam clock movement
• WH2 winding hole configuration
• Mounting depth 85mm
• Plate size Ø90mm

Featuring hour and half hour strike on two bells, Ø60 and Ø65mm. All necessary fittings included. For hands see references H8215 to H8223 inclusive.Winding Hole Configuration – WH2 Mounting Depth 85mm.

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Bell Strike Mechanical Clock Movement, Hermle 130.070,	H8210	£129.95	EACH	Check Stock

Clock Movement - Hermle 130.677 Back Wind Bell StrikeView Product

• Plate Size 90mm Diameter
• Floating balance
• Strikes half and full hours
• Includes fixings and keys
• Mounting depth 90mm
• For hands see references H8215 to H8223 inclusive
• 8 Day

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Back Wind Bell Strike Clock Movement, Hermle 130-677	H8792	£126.50	EACH	Check Stock

Clock Movement - Hermle 132.071 8 Day Ships Bell StrikeView Product

• Hermle 132.071 Ships bell strike movement
• 5 Jewel - lever platform escapement
• Striking on the hour and half hour using the marine sequence on a 65mm diameter rear mounted bell
• Movement mounting depth is 70mm
• Plate size diameter 90mm
• Blind plates are optional (90 or 108mm)
• Mounting depth 70mm
• Winding hole configuration = WH2

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Day Ships Bell Strike Movement, Hermle 132.071 8	H9310	£199.95	EACH	Check Stock

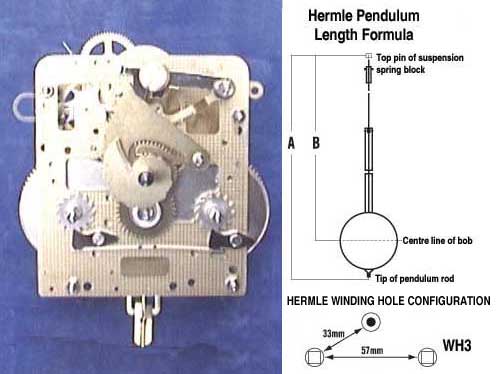

Clock Movement - Hermle 141.041 14 Day Regulator StrikeView all 3 Products

Available in three pendulum lengths. Striking on a spiral gong at half and full hours. Complete with Gridiron style pendulum and bob, plus winding key. Plate size 85 x 100mm Winding configuration for all – WH3 For hands see references H8215 to H8223 inclusive.

View Full Description

Name	Code	Price	UoM	Quantity / Stock
Regulator Strike Clock Pendulum (Pendulum Length 18cm), Hermle 141.041	H8789	£87.95	EACH	Check Stock
Regulator Strike Clock Pendulum (Pendulum Length 34cm), Hermle 141.041	H8790	£106.95	EACH	Check Stock
Regulator Strike Clock Pendulum (Pendulum Length 43cm), Hermle 141.041	H8791	£87.95	EACH	Check Stock

Clock Movement - Hermle 241.840View Product

Hermle 241.840 Movement. Vienna Regulator style 8 day, striking on a spiral gong at rear.

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Clock Movement, Hermle 241.840	H9580	£119.95	EACH	Check Stock

Clock Movement - Hermle 271.081 Longcase Bell StrikeView Product

• Hermle 271-081
• Pendulum swing: 24 cm
• Total Pendulum length: A – 100 cm
• Pendulum bob Ø: 115 mm
• Plate size: 104 x 108 mm
• Mounting Depth: 112 mm
• For hands see references H8215 to H8223 inclusive
• 8 Day

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Longcase Bell Strike Clock Movement, Hermle 271-081	H9311	£259.95	EACH	Check Stock

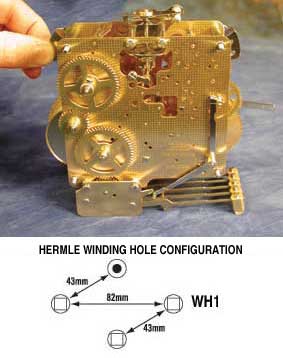

Clock Movement - Hermle 340.020 Westminster Chime, BracketView Product

• 8 day mantle clock movement
• Featuring 4 x 4 Westminster chime with under slung gong
• All necessary fittings included
• Plate size 100 x 120 mm
• Winding Hole Configuration – WH1
• Mounting Depth 91mm
• For hands see references H8215 to H8223 inclusive

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Westminster Chime, Bracket Mechanical Clock Movement, Hermle 340.020,	H8209	£194.00	EACH	Check Stock

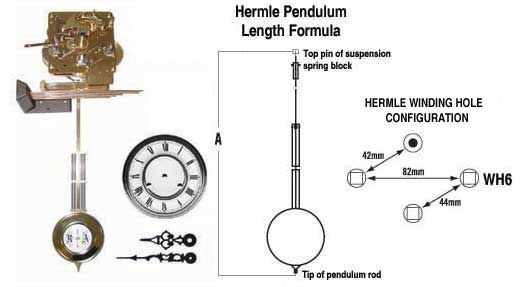

Clock Movement - Hermle 341.020 Movement, Dial and Hand KitView Product

• Pendulum bob Ø 80 mm
• Plate size 100 x 70 mm
• Mounting depth 109 mm
• Pendulum length: A – 45cm
• Includes dial and hands

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Clock Movement, Dial & Hand Kit, Hermle 341-020	H9582	£224.95	EACH	Check Stock

Clock Movement - Hermle 351.030 Movement and Key OnlyView Product

• Hermle 351-030
• 8 Day Westminster
• Spring wound, gong hammers on side of movement
• Movement and key only no accessories

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Movement & Key Only, Hermle 351-030	H9624	£179.95	EACH	Check Stock

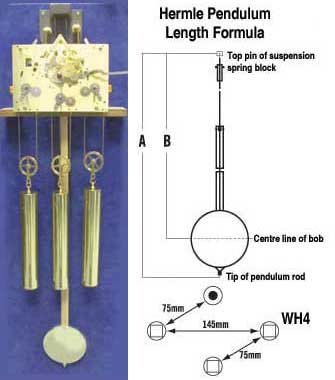

Clock Movement - Hermle 351.050 Westminster PendulumView all 3 Products

• Pendulum Swing 20 cm
• Pendulum Length: Available in 32, 40 and 50cm
• Pendulum Bob Ø 115 mm
• Plate size 120x120 mm
• Mounting Depth 145mm
• For hands see references H8215 to H8223 inclusive.
• 8 Day

View Full Description

Name	Code	Price	UoM	Quantity / Stock
Pendulum Length (A)= 32 cm, Hermle 351.050	H8993	£245.00	EACH	Check Stock
Pendulum Length (A)= 40 cm, Hermle 351.050	H8994	£245.00	EACH	Check Stock
Pendulum Length (A)= 50 cm, Hermle 351.050	H8995	£245.00	EACH	Check Stock

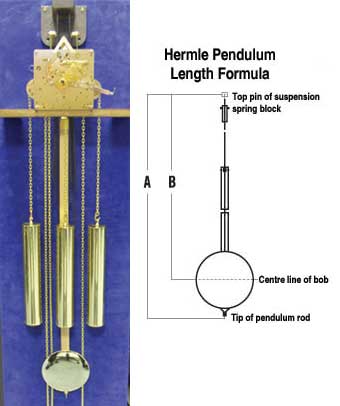

Clock Movement - Hermle 451.053 Long Case MechanicalView Product

• All necessary fittings included, except seatboard
• Pendulum swing: 24 cm
• Pendulum length: A – 99cm, B – 76cm
• Pendulum bob Ø: 115 mm
• Plate size: 120 x 120 mm
• Mounting Depth: 170mm
• For hands see references H8215 to H8223 inclusive
• 8 Day

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Long Case Mechanical Clock Movement, Hermle 451.053,	H8208	£345.00	EACH	Check Stock

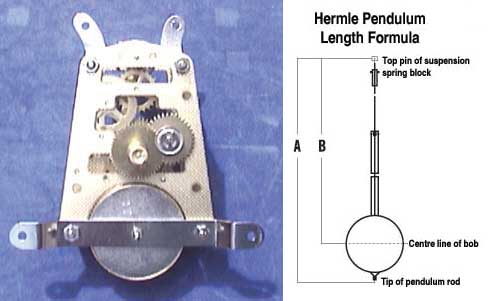

Clock Movement - Hermle 771 8 Day TimepieceView all 2 Products

• Available in two pendulum lengths.
• Complete with brass pendulum bob, key and mounting brackets.
• Plate size for both: 60 x 80mm
• Winding arbor to centre post = 30mm
• For hands see references H8215 to H8223 inclusive.

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	8 Day Cal 771-18 Timepiece, Hermle	H8787	£96.95	EACH	Check Stock
	8 Day Cal 771-25 Timepiece, Hermle	H8788	£96.95	EACH	Check Stock

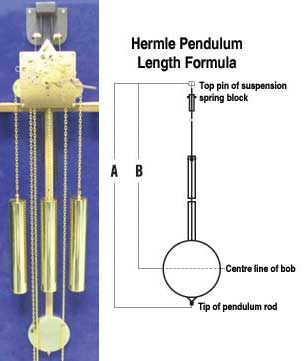

Clock Movement - Hermle 1151.053 Triple Chime Long CaseView Product

• Pendulum swing: 24 cm
• Pendulum length: A–111cm, B–88.5cm
• Pendulum bob Ø: 115 mm
• Plate size: 120 x 120 mm
• Mounting Depth: 200mm
• For hands see references H8215 to H8223 inclusive
• 8 Day

View Full Description
