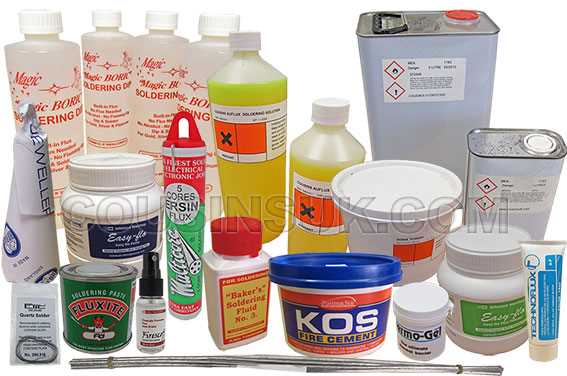

Soldering Pastes, Powders & Fluids

• Supplied in 5 & 25 litre containers
De-mineralised water is another name for deionised water. It is water from which the (mineral) ions have been removed.
It's a type of purified water, which is water that has been filtered or treated. It is necessary to use De-Mineralised Water in various products we distribute.
Please see below all items which use De-Mineralised Water.

• Elma Flame Hydrogen Soldering and Welding Unit (m20830, M20831 and M20832)
• Hydrogem Micro Welder (m0967)
• Hydrogem Micro Welder (m0968)
• Microflame Soldering Unit (mfuk30)
• Microflame Soldering Unit (mfuk60)
• Anti-Tarnishing System – Silverbrite 100 (S8582)
• Pen Plating System Digital (P19870)
• Microplating Machine (P4898, and P8664)
• Stripping / Electroplating Unit M8825
• Gilding Salts link Consumables> Plating Chemicals & Consumables> Gilding Salts
• Electrolytic Cleaning Salts (C4907)
• Electro Polishing Salts (C8898)
• Rhodium (C20792)
• Potassium Cyanide (C9185)
• Electro Brightening Salts (Stripping Salts) (C19822)
• Vitex Safety Pickle Cleaning Salts (P5231 and P5232)

Auflux Soldering Solution
The original green ready made flux has been used in the jewellery trade for generations.
Made in Europe by Lippert Unipol (Cannings)

Normal fluxes cause bubbles so navigating solder during fluxing is often difficult.
Auflux Soldering Solution simplifies this respect of jobbing and will breed confidence when soldering more complex jobs.

It will reduce fire stain/oxidation excesses when soldering because of its unique chemical formula. Auflux has a unique chemical formula which has often been attempted to duplicate to no known effective results. Beware of imitation or inferior solutions they generally give disappointing results.

• Auflux will solder gold, silver, copper, brass, mild steel, stainless steel, but not aluminium.
• Auflux has a working range of approximately 550-800°C.
• Can be used majority temperature grades of solders from extra easy to hard (see our listing for the complete range).

Bakers Fluid No.3 is a specially formulated liquid flux ideal for soldering and tinning of copper and tinned materials.
• Easy to apply fast acting economical in use, ensuring sound strong joints
• Zinc Chloride based flux very effective at soldering copper, brass, and pre tinned materials
• We supply fist class solder to use with Bakers Soldering Fluid No-3 code S33171
• Solder copper brass pewter bronze zinc lead, tin and gilding metal
• Quantity: 125ml
• Weight: 190g

• Borax flux for jewellery soldering
• Dissolves rapidly to form a paste

Borax Cones are used with Borax Dishes and are a traditional way of making your own flux for precious/non precious soldering.
Pour a little water into your Borax Dish the residual water should be enough to form a paste.
Grind down the cone on bottom of the dish using a round motion this will result a soldering flux paste to be formed.
If your left with some flux don’t worry just add water and repeat the process to make more flux.

A flux commonly used when soldering jewellery. Our special form of borax is produced for use by jewellers, silversmiths, gold investment ingot makers, metal workers, etc.

• Our borax is easy to dissolve and melt than ordinary borax.
• Add the flux with tap water to form a toothpaste consistency and apply on soldering joins ware necessary using fine brushes.
• The flux to use when melting precious metals in an electric furnace or with a Sievert torch system.

Easy-flo™ Flux Paste a brazing flux suitable for use with precious metal brazing. It has a working range of 575-825ºC .Easy-flo™ Flux Paste exhibits better life at temperature and greater overheat resistance than many other flux pastes.

Easy-flo™ Flux paste has a low melt viscosity and as such performs well when pasted onto vertical surfaces, and can be useful when brazing stainless steel. The molten viscosity of Easy-flo™ Flux Paste is such that it holds on vertical surfaces. It is therefore particularly useful when brazing joints in positions where other fluxes may have a tendency to run away from the joint.

Product uses: This product is suitable for use on all the common materials, gold, silver, copper, brass, mild steel and stainless steel), but not aluminium.

Conditions for use: Flux paste should be brushed onto the joint surfaces before assembly. Further flux should then be applied externally either side of the joint mouth.

It is good practice to mechanically clean and degrease the joint surface before applying flux. Heat slowly and evenly to the brazing temperature, without local overheating. Use the flux as a temperature guide - it will become opaque and may have some dark patches as brazing temperature is approached. If blackening of the flux occurs this is often a sign of insufficient flux, overheating or flux exhaustion.

Easy-flo™ Flux Powder is Johnson Matthey’s leading brand brazing flux. It is sold widely throughout the world and is recognised as one of the best flux powders available. It is very fluid at the bottom end of its working range resulting in early and extensive flux spread. This ensures that the joint surfaces are well protected from oxidation at the earliest possible point of the brazing operation. This high level of fluidity also helps to reduce flux voids/entrapment in the joint, the low viscosity of the flux aiding its displacement by the brazing filler metal from the joint gap.

Easy-Flo Flux Powder has a working range of 550-800°C. It is most suitable for use with gold, silver, copper, copper alloys, brass, mild steel and stainless steel, but not aluminium soldering.
Brazing is a metal-joining process whereby a filler metal is heated above and distributed between two or more close-fitting parts by capillary action. The filler metal is brought slightly above its melting (liquid US) temperature while protected by a suitable atmosphere, a flux. Then flows over the base metal (known as wetting) and is then cooled to join the work pieces together. It is similar to soldering, except the temperature used to melt the filler metal is above 450 °C.

Easy-Flo™ Flux Powder has excellent ‘hot rodding’ characteristics and adheres well to a warmed brazing rod allowing flux to be transferred to the joint area via the rod. This characteristic has made
Easy-Flo Flux Powder very popular in hand brazing operations where the time to produce a brazed component is crucial.

Clean and degrease the joint surfaces before applying flux.

Flux powder should be mixed with water and a few drops of liquid detergent to form a thick paste. Paste should then be brushed onto the joint surfaces before assembly. Further flux should then be applied externally on either side of the joint mouth.

Hot Rodding is where a warm brazing rod is dipped into flux powder and the flux adhering to the rod is transferred to the joint area. This is an effective fluxing method but difficult to achieve good penetration of capillary joints. It can be used to supplement a pre-fluxed area during heating.

It is good practice to mechanically clean and degrease the joint surface before applying flux. Heat slowly and evenly to the brazing temperature, without local overheating. Use the flux as a temperature guide - it will become clear or opaque as the brazing temperature is approached. If blackening of the flux occurs this is often a sign of insufficient flux, overheating or flux exhaustion.

The flux residues left after completion of the brazing operation are corrosive and should be removed. The residues for Easy-Flo Flux Powder can easily be removed by soaking in hot water > 40°C for between 15 and 30 minutes. Any remaining residues can then be brushed off in running water.

• 100g

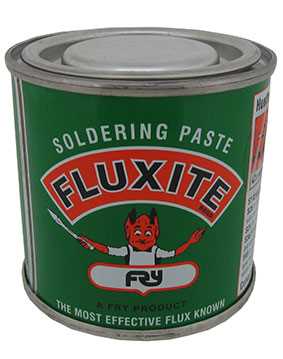

"Fry" Fluxite is the most effective Flux Known
• The quality soldering fluid clean – fast – economical
• An effective and reliable flux paste which simplifies soldering and lead jointing.
• Also suitable for lead-free and lead containing solder alloys
• We supply fist class solder to use with Fluxite Solder Paste code S33171. Solder copper brass pewter bronze zinc lead, tin and gilding metal
• Suitable for model makers, hobbies, crafts, arts, badge makers to name just a few users

Weight: 140 grams

• Bergeon 30497
• Soldering fluid, free from acid
• Supplied in a 50ml bottle
• Use commercial soft solder, code S33171

Johnson Matthey Metal Joining Tenacity™ No. 125 Flux Powder constantly evolves to meet the needs of its customers, of emerging technologies and of the environment it operates in.

Tenacity™ No.125 Flux Powder is a high temperature flux that is effective on platinum, copper, copper based alloys, mild and low alloy steels and tungsten carbide with brazing filler metals melting between 750-1150°C.
Typically it would be used with specialized JM Bronze™ or Argentel™ Alloys, particularly F-Bronze.

• Product uses: Tenacity™ No.125 Flux Powder is suitable for use on platinum, copper, copper based alloys, mild and low alloy steels and tungsten carbide.

• Conditions for use: The powder should be mixed with water and a few drops of a liquid detergent to form a paste which should then be brushed onto the joint surfaces before assembly. Further flux should then be applied externally either side of the joint mouth.

It is good practice to mechanically clean and degrease the joint surface before applying flux.
Heat slowly and evenly to the brazing temperature, without local overheating.
If blackening of the flux occurs this is often a sign of insufficient flux, overheating or flux exhaustion.

How to use…
1. Mechanically clean and degrease the joint surface before applying flux
2. Mix flux powder with water and a few drops of liquid detergent to form a thick paste
3. Brush paste onto the joint surfaces before assembly and externally either side of the joint opening
4. Heat evenly to the brazing temperature, avoid localised overheating
5. If blackening of the component or flux occurs this is a sign of insufficient flux, overheating or flux exhaustion
6. The flux residues are insoluble in water and must be removed by mechanical methods such as filing abrasives and grit blasting

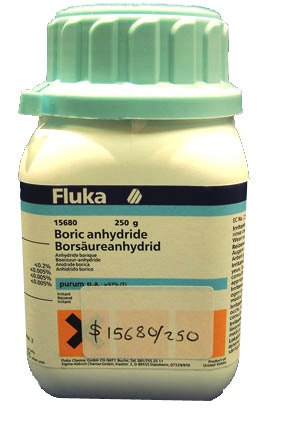

• Boric anhydride 250g.
• To be used with Methanol (C9864) for the Elma Hot Flame 100 micro-flame welder.

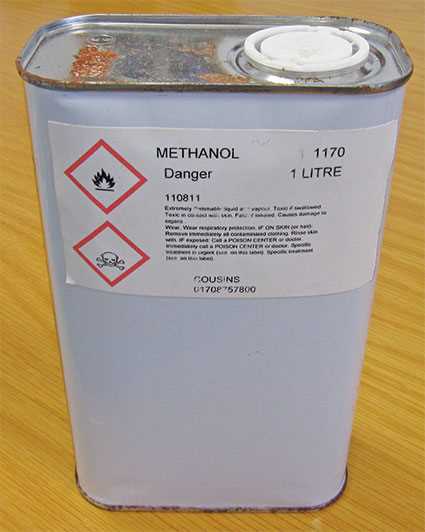

• Methanol (Methyl Alcohol) 1 litre (pure).
• To be used with Boric Anhydride (c9863) for the Elma Hot Flame 100 micro-flame welder
• Also used with Alcohol lamp (code A0002) an excellent fuel with exceptional burning properties.
• Clean watch work and incomparable for degreasing hairsprings.

Direction: Place components in a jar or suitable container which has been partly filled with Methanol. Leave for one or two minutes. Remove by means of tweezers and drain on a piece of paper.

The most common fuel to use in a micro flame/welder soldering unit.

• MEK flame temperature reaches 1300°C
• Use in a micro weld unit to achieve the perfect temperature and size of flame when soldering gold and silver

Please note: For soldering platinum use Methylated Sprits.

Popular ways to be used:

• Atomizer fuel for micro-flame welders (codes MFUK30/60) achieves a higher temperature for soldering platinum, maintaining a torch flame temperature of 3000°C

• After removing a piece that has been held in Shellac (code S31924 ) clean or wipe off unwanted fragments with this solution

• Using the combined traditional mix of Boric Acid with Methylated Spirits to create a skin to prohibit fire stain while soldering (please see Boric Acid code C4361 for instructions)

• An excellent fuel with great burning properties to use in an Alcohol Lamp (A0002)

Use Boric Acid with Methylated Sprits (code C4357) to form a protective skin over pieces about to be soldered, from fire stain.

A traditional favourite with Jobbing/Repairer Jewellers and Silversmiths.
• Please note: This method will only work with 9-18ct jewellery and silver.

How prepare and use…
• Clean the piece as you would before soldering and assemble.
• Mix with 1 litre of methylated sprits (code C4357/C4358) and 150g of Boric acid in a glass or polyurethane container, with a lid.
• Depending on the size of the piece cover it entirely by dipping or brushing on a fine coating.
• Heat all over with a torch to form a white coloured skin, this creates the protective barrier against fire stain.
• Solder joins normally and clean the work as normal with acid (pickle code P5232) fire stain will be noticeably reduced.

Soft Charcoal Blocks

The traditional jeweller’s soldering block.

• Use Auflux and charcoal blocks together to protect the surface of the bench and to create an efficient soldering area.
• Made from select, close-grain, knot-free, natural willow especially prepared and treated for optimum performance.
• Charcoal under the flame creates a reducing atmosphere for a cleaner soldering environment.
• Reflects heat from the surface effectively excelling soldering results.
• Maximum temperature it will tolerate approximately 3000° c

Please note: retain the block shape by wrapping the sides tightly with binding wire (Code W32434) before use.

Heat insulating paste for jeweller - goldsmith
It is no longer necessary to remove the stone before undertaking the solder.
The parts protected by the paste never become covered with oxide and
the heat will never reach the jewel.
After soldering, the paste can be removed with water.
Non toxic. Without CFC. Odourless.

The first name in fire cements with a manufacturing history since 1882 the Purimachos KOS fire cement is a brand leader with high performance.

KOS Fire Cement is a ready mixed blend of thermo setting resins and inorganic fillers that cures when exposed to heat, resulting in a mortar which is resistant to temperatures up to 1250°C.

• Can be used for domestic and commercial applications on solder blocks/boards furnace repair/sealing, fire bricks, fire grates, flue pipes, flue bricks, boilers and other applications subject to extreme heat.
• By pushing in your items into KOS Fire Cement such as jewellery/fine components soldering you can hold awkward items together while soldering

Weight 500grams

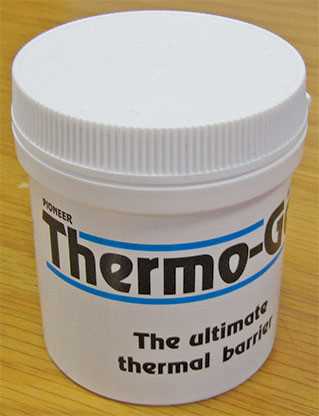

• Application - Spread Thermo Gel with a thickness 5 to 10mm approx over the area to protect from heat. The amount used depends on the amount of heat applied.
• Ideal for Silver assembley, modelmaking, Printed circuit board.
• Isolates the heat so temperature remains the same.

Commercial grade solder 8 strips per pack

This blow pipe solder is a general purpose solder for use on most common materials.

It is free flowing; ideal for low temperature brazing that is easy to use, with low heat leaves strong, tidy joints.
Ideally used to solder copper, brass, pewter, bronze, zinc, lead, tin and gilding metal.

Code S33169 Bakers Soldering Fluid No. 3 and C33170 Fluxite Soldering Paste is the perfect flux to use with this solder.

Size and weight:
Each strip is 570mm in length and the half round shape measures at 5mm x 2.3mm approximately.
Weight: 450g approximately

• Bergeon 6226D
• Composition 62/36: tin/lead
• Contains 2% silver
• Melting point 179°
• Diameter 0.46mm
• For ceramics, silver plated pieces, integrated circuits.

Multicore 5 cores Flux Tube Savbit Alloy Solder

Savbit alloy solder reduces copper erosion and increases life of soldering iron bits, by up to 10 times.

Suitable for model making, hobbies, telecommunications and electronics work.
• Use with soldering irons increasing life of soldering tips
• Handy tube dispenser pull out what you need no tangling then using reel coil solders
• Solder copper brass pewter bronze zinc lead, tin and gilding metal
• Extra fast non-corrosive
• Increases life of soldering tips
• Solder wire Ø1.22mm (18swg)

Weight including dispenser 30g

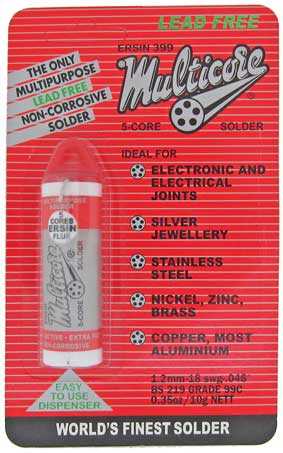

The only multipurpose lead free non-corrosive solder.

Ersin Multicore 5 – Solder assures the finest possible join.

Only Multicore solder contains non-corrosive extra active Ersin flux.
Five separate cores of flux provide rapid melting and eliminate the possibility of no flux in any portion of the wire, resulting in speedy efficiency and perfect joints every time.

Apply Ersin Multicore Solder simultaneously with a soldering iron or other heat source to clean components to be soldered.
No additional flux is required. Pre-cleaning is generally not necessary.
Apply solder directly on to the iron only for tinning. Do not carry solder to the joint on the iron.

Ideal for:
• Silver and costume jewellery
• Stainless steel
• Nickel, zinc, brass
• Copper, most aluminium
• Electronic electrical joints

Sizes and weight:
• 1.2mm (18swg, 0.048”)
• BS219 Grade 99c
• 0.35 oz / 10g Nett

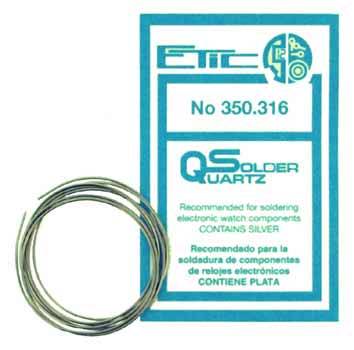

A special solder for electronic watch applications from ETIC.

The original acid pickle salts for gold, silver & copper. Brings back the original colour to the metal after soldering. For best results mix 10% water at 40%.
