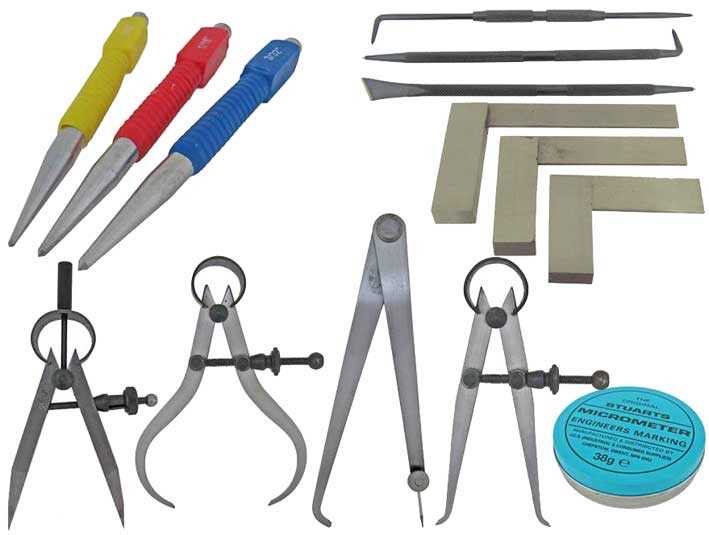

Marking & Scoring

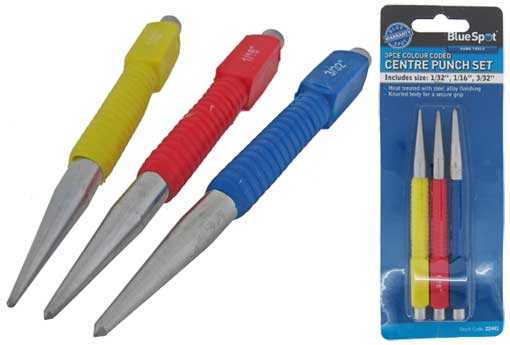

A center punch is used to mark the center of a point. It is usually used to mark the center of a hole when drilling holes.

A drill bit has the tendency to ‘wander’ if it does not start in a recess. A center punch forms a large enough dimple to ‘guide’ the tip of the drill bit.

When drilling larger holes and the web of the drill is wider than the indentation produced by a center punch, the drilling of a pilot hole is usually needed.

• Includes sizes 1/32”, 1/16”, 3/32”
• Heat treated with steel alloy finishing
• Knurled soft rubber body for secure grip

Weight: 160g

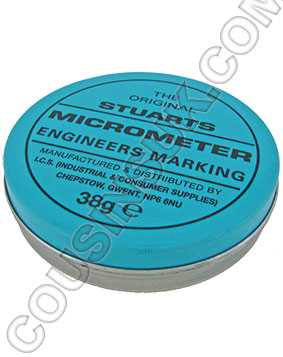

The Original Stuarts Micrometer Blue, Engineers Marking Blue.

Engineer's Blue is a highly pigmented paste used to assist in the mating of two or more components.

• Normally known as Engineers Blue, this thick blue grease which is used as a thin even smear so when two parts are fitted together the area of contact is marked by the transference of the blue colour.

• When Engineer's blue is mixed with methylated spirits (Code C4357) it forms a quick drying stain which is known as marking blue or layout dye. This stain is used in the marking out operation in metalworking with various tools.

Supplied in a 38g tin.
Weight: 100g

This caliper is used to measure the external diameters of objects of all shapes.
Simply adjust the caliper so both points touch the two ends you would like to measure and make a reading of the two points with a rule (code: R4911).

• Made from carbon steel.
• Polished finish.
• Heat treated points.
• Quick adjusting spring nut for speedy and positive setting.

Weight: 60g

This gauge is used for taking the internal diameters of objects of all shapes.
Simply adjust the caliper so both points touch the two ends you would like to measure and make a reading of the two points with a rule (code: R4911).

• Made from carbon steel.
• Polished finish.
• Heat treated points.
• Quick adjusting spring nut for speedy and positive setting.

Weight: 60g

Fixed points ‘Jenny’ or ‘Hermaphrodite’ callipers are specifically designed to locate the centre of a round or square section of metal, and are also used for marking off a constant distance from an edge.

The offset leg holds an adjustable point and the straight leg features an integral locating lug.

Weight: 90g

• Precision Marking Squares are used to mark out the body of your piece and to achieve straight lines
• Milled to an exact 90° angle
• These precision squares are ideal for marking perfect corners, centralising stones and finding centres
• Compact and rigid, they are made with carbon steel
