Ring & Bracelet Holding / Clamping Tools

The perfect hands free soldering aid!

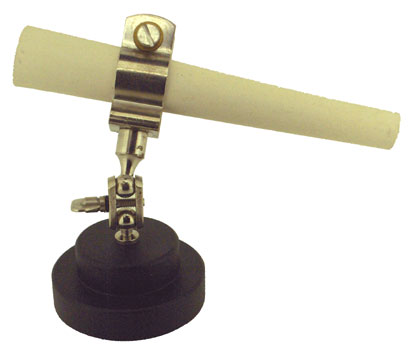

The ceramic ring stick and base is the ultimate solution in tackling awkward soldering jobs; for example controlling the flow of solder or accessing an obstructed part of a ring to solder, etc is an ever pressing problem. Using this ceramic ring stick on a stand gives the user a heat resistant surface amalgamated with a third hand to make soldering straightforward.

We supply two differently manufactured types of this tool, the original Bergeon Swiss and also the economical Indian brand, giving excellent value.

Comprising a cast iron base with a fitted swivel ball, while the metal clip locks the ceramic holder in place and is easily adjustable to raise and lower the stick depending on the diameter of the ring. The adjustable ball swivel enables versatile use allowing repositioning of work as frequently as required.

Replacement ceramic sticks are available and are interchangeable with one another for both models.

This A*F Swiss is our most prestigious ring clamp from our range. Strong and robust, it can handle large volumes of work and is very comfortable to work with; looked after properly can last a life time.

Thread action grips like a bench vice and allows rapid and accurate positioning of the ring.
Precision made from steel and aluminium for long life.
Features lined jaws to prevent damage to the ring, comfortable, rubber covered handle and
exit hole for filings.
Easily dismantled for cleaning. Includes one pair of replacement jaw inserts.

Size and weight:
• Height 170mm
• Diameter of rubber covered handle 30mm
• Jaw size: 30mm x 25mm – jaws opening 10mm
• Weight: 290mm

Holding a ring to polish inside can be awkward, particularly with smaller sized rings.
This tool combats all of these problems with ease assuring you the completing
of the job efficiently.

We also supply a large range of inside felts, abrasives and final finish cotton inside cones
in a variety of sizes and materials to cater for all inside ring finishing.

Features
• Light weight
• Spring loaded
• 200mm in length and only weighing
• Will hold practically any size, shape and style of ring, wedding, signet, eternity, etc

Weight: 42 grams

A popular option to hold rings externally as well as using them to inspect rings; it is also an impressive prop when selling.
Useful for holding rings making reading hallmarks easier; and is also ideal to hold
pieces when cleaning rings with steam cleaning and ultrasonic machines.

Also ideal to hold the bezel on top of your ring mount while you are soldering

For ring shank or head, withslide lock, textured platform plus sculptured
tong with inside grove.
• Length = 130mm
• 3mm Ø table.

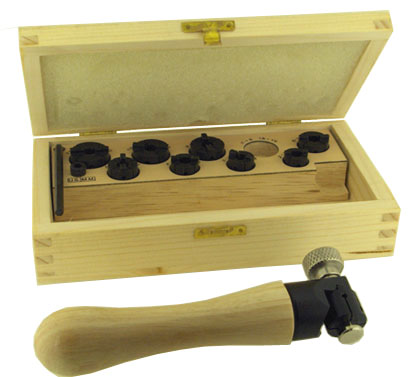

This exceptional tool allows you to access the circumference of a ring.
Firmly grips the ring from the inside without marking, allowing work on the outside of the ring.

• Mount the ring with ease, with the cleverly designed knurled hand operated head locking thread and pin. Or lock the ring with an Allen key and hex head nut giving extra holding power.
• Includes nine plastic sleeve inserts from sizes 13mm to 22mm in diameter which cover the standard A to Z British Sizes.
• Smooth hardwood handles for comfortable hand-held operations.
• Unit comes in a quality wooded finished storage box

Weight: 525 grams

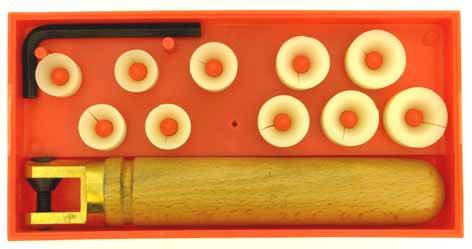

A*F Swiss: Ring Clamp with 10 nylon Dies Swiss

Hurry last few left!

This exceptional tool allows you to access the circumference of a ring. Firmly grips the ring from the inside without marking, allowing work on the outside of the ring.

• Mount the ring with ease, with the cleverly designed knurled hand operated head locking thread and pin. Or lock the ring with an Allen key and hex head nut giving extra holding power.
• Includes nine plastic sleeve inserts from sizes 13mm to 22mm in diameter which cover the standard A to Z British Sizes.
• Smooth hardwood handles for comfortable hand-held operations.
• Plastic storage tray included.

This ring clamp enables you to hold rings internally in order to work on the
outer face of the ring easily.
Unwind the wing nut anti-clockwise to loosen the centre metal taper; mount
the ring on the opposing end.
To secure, turn the wing nut clockwise and the taper will tighten.
This expands the four wooden jaws putting pressure inside the ring and hence
locking, ready to be worked on.

• Will hold from sizes H to M Wheat sheaf (UK)
• If you require a clamp for larger and smaller sizes take a look at ring holding clamp with 9 dies (Code R20127)
• Over-all length 145mm
• Weight: 84 grams

A popular option to hold rings internally as well as using them to inspect rings; it is also
an impressive prop when selling.
It is also ideal to hold pieces when cleaning rings with steam cleaning and ultrasonic machines.
• Overall length: 130mm

• Bergeon 6732
• Side Screw Leather Jawed Aluminium Ring Clamp
• Internal/External hold
• With leather protection
• Clamping screw and release spring
• In aluminium
• Length 135mm
• Weight: 135 grams

The wedge clamp is a traditional tool which holds jewellery, components but particularly rings.
Also known as speed clamps they make every day repairs, alterations, making fast and easy.

To use: simply pull the wedge out of the clamp, and then place the item in the opposing end.
Replace the wedge until tight in the clamp to secure the piece. To secure further, tap the wedge on the bench.
To release the item tap the wedge sideways on your bench until release.
Items can be gripped in either ends, one being rounded, and the other flat.
The clamps jaws are lined with leather to prevent marking work.
The centre pivot band is made from steel giving an extra strong grip.

• Light weight plastic contraction
• Opening maximum 15mm
• Both sides have leather coated jaws

Over-all length: 150mm
Weight: 100grams

The wedge clamp is a traditional tool which holds jewellery, components but particularly rings.
Having a side locking wing nut and bolt fitting strengthens the grip on pieces.
The clamps jaws are lined with leather to prevent marking work.
Made from wood the clamp is lightweight and the wing nut and bolt is made
from steel, making it robust.
• Overall length 135mm
• Weight: 75 grams

The wedge clamp is a traditional tool which holds jewellery, components but particularly rings.
Having a side locking wing nut and bolt fitting strengthens the grip on pieces.
The jaws are wooden allowing the user to adapt and shape the clamp to hold
differently shaped pieces.
Made from wood the clamp is lightweight and the wing nut and bolt is made from
steel, making it robust.
• Over-all length 135mm
• Weight: 75 grams
