Foredom Pendant Drill Motors

Tips:
The LX pendant motor (FDLX2TXR) will give you high torque but low speed (5.000 RPM) while the Jewellers Kits & SR Slip joint pendant motors (K2220CE & K2230CE) will give you less torque but plenty of power with 1/6HP, reversible rotation (not available in the LX) and maximum speed of 18.000 RPM.
The Jewellers Kits & SR Slip Joint will work fine with wax but also with metal applications and other jobs where you need speeds above 5.000 RPM.

Please be sure to read the Owner’s Manual before operating the flexible shaft system and later on visit Foredom's website www.foredom.net and view the short duration videos on maintenance.
The videos on flexible shaft and sheath maintenance and carbon brush inspection and replacements are highly recommended so that you can perform routine maintenance of you new Foredom motor

View Full Description

Documents available to download

Foredom Pendant Drill Motors products

Click on the headings below to show/hide available product information and display available product stock items:

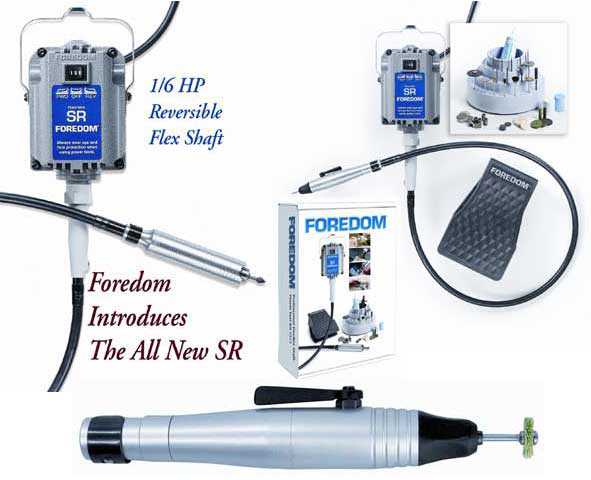

Pendant Motor - Jewellers Kit & No.20 "Quick Release" HandpieceView Product

• New 1/6 HP Reversible SR Motor
• FCT foot operated speed control
• No. 20 quick change handpiece for use with standard (3/32") shank burs
• Upgraded 43 piece accessory kit with rotating bur and tool holder, flex shaft grease
• 220 Volts
• K2220CE Replacement Brushes = MP132P
• U.S style hand fitting

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Jewellers Kit & No20 "Quick Release" Handpiece	K2220CE	£189.95	EACH	Check Stock

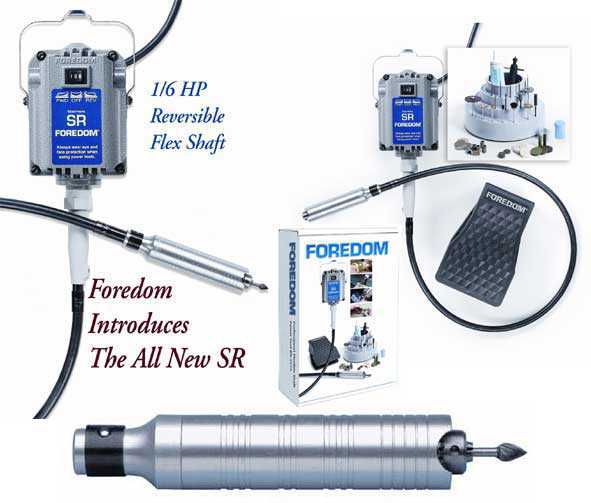

Pendant Motor - Jewellers Kit & No.30 HandpieceView Product

• New 1/6 HP Reversible SR Motor
• FCT foot operated speed control
• No. 30 handpiece with geared 3-jaw No.0 chuck and CK-0 chuck key with plastic handle No. 11
• Upgraded 43 piece accessory kit with rotating bur and tool holder, flex shaft grease
• 220 Volts
• K2230CE Replacement Brushes = MP132P
• U.S style hand fitting

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Jewellers Kit & No30 Handpiece	K2230CE	£179.95	EACH	Check Stock

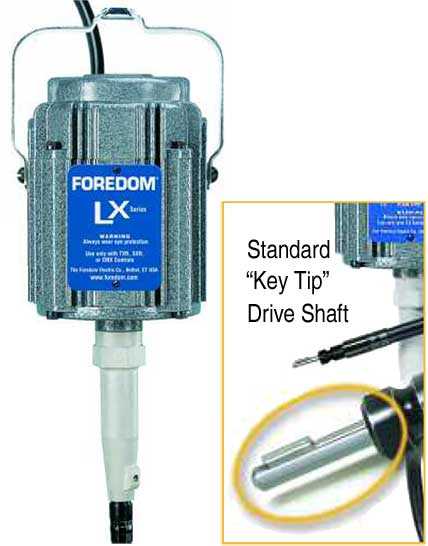

Pendant Motor - LX High Torque Motor, Low Speed - Foredom View Product

Best for jobs requiring "Extra Torque" at low speed up to 5,000rpm

• 2 Year Warranty.
• 230 volt
• UK plug
• Foot Control

Specifically designed for low speed / high torque applications, LX motors offer the added
power needed for low speed jobs like stone setting, wax modeling and pearl drilling.

Ball bearing motor features full power and torque from start up through to maximum speed
of 5,000rpm.

These motors are ideal for use with Foredom's drill presses. They also are well matched
with 15 & 15D hammer hand pieces.

Series LX motors come with standard length shafts and more flexible neoprene sheaths
for connecting to any of our 20+ quick disconnect handpieces.
• LX Replacement Brushes = MP319P
• U.S style hand fitting

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	LX High Torque Motor, Low Speed - Foredom	FDLX2TXR	£205.00	EACH	Check Stock

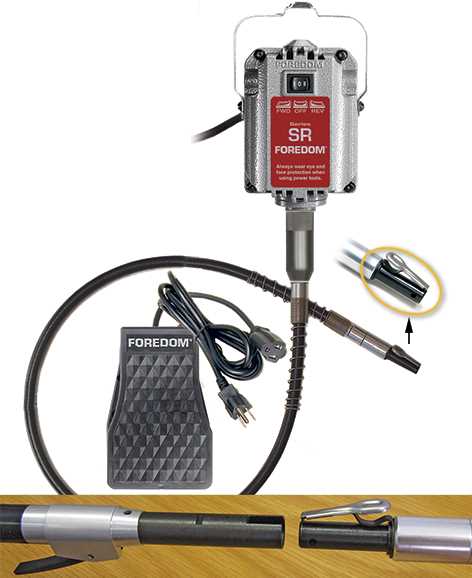

Pendant Motor - SR Slip Joint Motor with Foot Control - Foredom View Product

Shown here with Handpieces attached, not included.

Foredom flexible shaft power tool with European motor with slip joint flexible shaft and foot control.

Motor has the power and speed required for industrial applications.
Ideal for Jewellery production,woodcarving,sculpting and other work.
There is a selection of nine interchangeable European slip joint handpieces to use with it.

Foot control has a power cable with UK style plug.

Both are CE marked and meet all electrical and safety requirements.
• Variable Speed from 0 to 18,000 RPM
• 1/6 Horsepower
• 125 Watts, 9 Amps
• Reversible universal motor with ball bearings runs in forward and reverse.
• For use on 220 Volts
• Two year warranty
• FDSR2CE Replacement Brushes = MP132P
• European style hand fitting

View Full Description
