Furnaces

Furnaces products

Click on the headings below to show/hide available product information and display available product stock items:

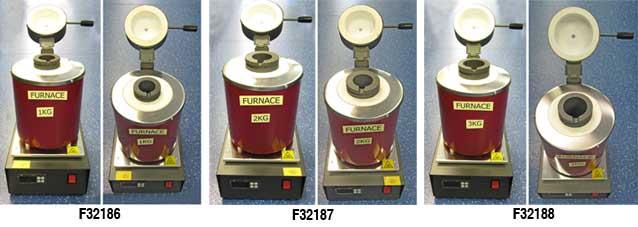

Furnaces - Melting FurnacesView all 3 Products

Economically melt your Gold, Silver and non ferrous metals for casting and ingot-pouring applications

• melting capacity available 1kg, 2kg & 3kg
• precise control of melting temperatures up to 2028°F (1120°C)
• user friendly & fully automatic designed for safe and easy use
• easily programmable controller L E D display
• insulated lid holds in heat and keeps oxygen out for a cleaner melt
• grooved graphite crucible is designed for easy removal from the furnace using specially designed crucible tongs (included)
• steel housing around heating element for long shop life
• very popular for investment gold bar makers
• made in Italy
• when your crucible is full with metal and the temperature set slightly under your setting point stir with appropriate stirring rod (carbon stirring rod included).
Stirring your metal with a stirring rod will give you a good clean flow when you are ready to pour into ingot moulds

Size : Height 38cm Depth 21cm Width 23cm
Weight : 6kg

View Full Description

Documents available to download

Name	Code	Price	UoM	Quantity / Stock
Melting Furnace, 1 KG	F32186	£395.00	EACH	Check Stock
Melting Furnace, 2 KG	F32187	£425.00	EACH	Check Stock
Melting Furnace, 3 KG	F32188	£495.00	EACH	Check Stock

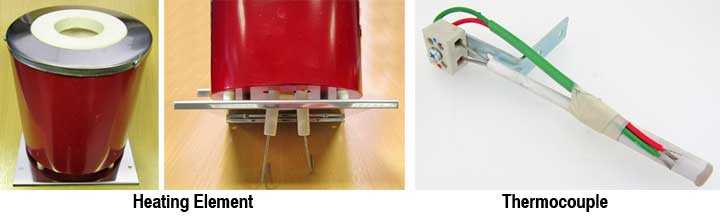

Melting Furnace AccessoriesView all 6 Products

No need to purchase a second Furnace....

Just swap the easy fitting heating elements to convert to a different size
(you will also need to swap the thermocouple)

View Full Description

Name	Code	Price	UoM	Quantity / Stock
Melting Furnace Heating Element, 1 KG	F32189	£179.95	EACH	Check Stock
Melting Furnace Heating Element, 2 KG	F32190	£199.95	EACH	Check Stock
Melting Furnace Heating Element, 3 KG	F32191	£224.95	EACH	Check Stock
Melting Furnace Thermocouple, 1 KG	F32192	£19.95	EACH	Check Stock
Melting Furnace Thermocouple, 2 KG	F32193	£19.95	EACH	Check Stock
Melting Furnace Thermocouple, 3 KG	F32194	£19.95	EACH	Check Stock

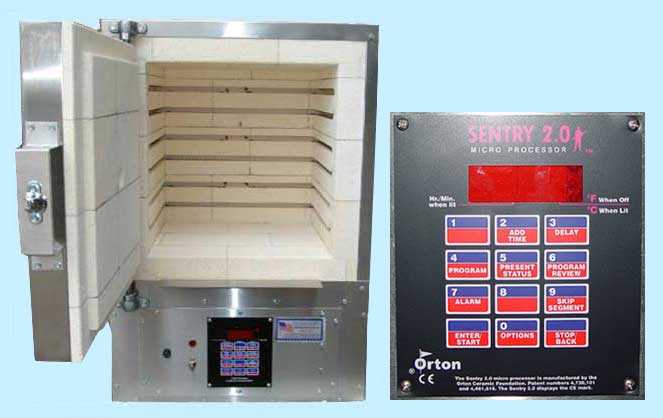

Furnaces - Burnout Furnace 14" x 14" x 14" (Interior Dimensions)View Product

These production-sized ovens feature simple digital programming

• Sturdy stainless steel oven cabinets and interior fire brick construction
• Exposed side wall elements to ensure efficient even heating and fast and effective burnouts
• Made in America
• Three pre-set programs with delayed start ( up to 99 hours)
• Custom set up to six ramp set segments (each with its own rate temperature and hold time ) using the programmable controller

Exterior Dimensions WxHxD: 19 x 26 x 22 inches (483 x 660 x 559mm)
Interior Dimensions WxHxD: 14 x 14 x 14 inches (356 x 356 x 356mm)
Shipping Weight: 165 lbs (75kg)
Voltage: 240V, 16.7A, 4000W
Maximum Temperature is 2000 degrees Fahrenheit

View Full Description

	Name	Code	Price	UoM	Quantity / Stock
	Burnout Furnace 14" x 14" x 14" (Interior Dimensions)	F19540	£2,195.00	EACH	Check Stock

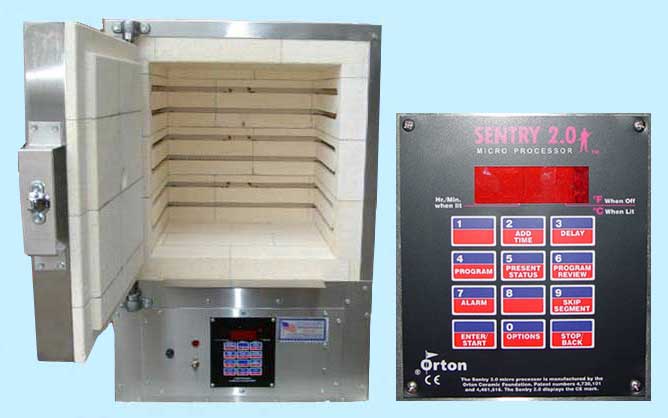

Furnaces - Burnout Furnace 18" x 18" x 18" (Interior Dimensions)View Product

These production-sized ovens feature simple digital programming

• Sturdy stainless steel oven cabinets and interior fire brick construction
• Exposed side wall elements to ensure efficient even heating and fast and effective burnouts
• Made in America
• Three pre-set programs with delayed start ( up to 99 hours)
• Custom set up to six ramp set segments (each with its own rate temperature and hold time ) using the programmable controller

Exterior Dimensions WxHxD: 24 x 31 x 27 inches (610 x 787 x 686mm)
Interior Dimensions WxHxD: 18 x 18 x 18 inches (457 x 457 x 457mm)
Shipping Weight: 295 lbs (134kg)
Voltage: 240V, 24A, 5760W
Maximum Temperature is 1700 degrees Fahrenheit

View Full Description
