Polishing Machine Accessories - Other

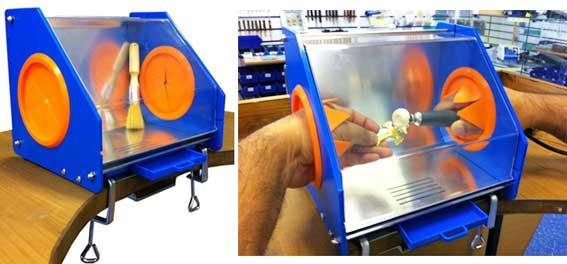

Increases in the price of precious metals have hit record highs with the potential to increase further; ergo it is now essential to be prudent with filing, polishing, grinding, cutting residue, etc. The precious metal collecting box is essential apparatus in today's workshops. Save, recover and store metal fragments such as gold, silver, platinum, titanium, palladium, copper, brass, etc making it quick and easy to scrap lemel. As well as containing fragmentations this box dramatically reduces dust in the air improving the working environment. Its two handed user holes subtly gives an easily confined, ergonomic working environment.

Additionally the clear Perspex viewing sheet can also be removed making cleaning of the sheet, items, as well as being able to work on larger pieces. Sweep the lemel into the lemel tray underneath the unit into the six grooves specifically cut out; this can be withdrawn to retrieve lemel and put into a spare container ready for scraping. This box is supplied with two G clamps; screw down so the box can not be moved during work if required.

The unit is constructed from the best quantity materials, its side walls and bottom lemel draw are made from good quality plastic, while the rubber round covers with six slits on the box's sides provides easy and comfortable access when working.

The box has an aluminium backing and base held by three metal threaded rods. An assortment of nuts and screws are provided as well as a small spanner in order to quickly and easily assemble the box, instructions included.

Size and weight:
• 230mm x 205mm x 205mm
• Rubber guards diameter 100mm
• Weight: 1.6kg

Through usage mops clog with compound and surface residue, which can cause defect the quality of polishing.

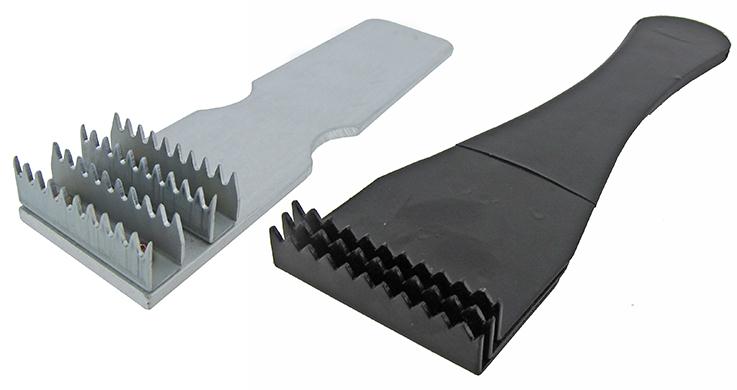

A Mop/Dressing Rake will clean and reshape a mop restoring it to good as new, giving the user fresh mop material when polishing so you can polish to a high standard.

Please note: appropriate protective equipment should be used when operating this tool, see links below for full range.

How to use…

1. Run the soiled mop on the polishing machine as if you were polishing.
2. Hold the Dressing Rake with pressure against the mops.
3. With the spikes of the tool facing down let the mop cut into the rake (as if polishing).
4. The Dressing Rake will shave the mop hair surface and renew the mops look and competency.
5. Now the mop is ready to polish.

Pig Tails are a great attachment to mount on any DIY house hold drill. Mount on a large selection of mops and abrasives to grind, smooth and polish pieces giving a fresh new look, all supplied from Cousins Material House, please see links below.

We also supply a Flexible Drive Shaft (Code S33155), to attach to the drill, enabling the user to access intricate areas when added flexibility is required.

• Diameter shank: 6mm
• Overall length: 80mm
• Thread Maximum Ø15mm
• Weight: 45g

Bergeon Swiss 2045

An ideal tool for polishing in the most intricate areas.
• Polish into areas such as claw settings, filigree styles, in between bracelet and chain links, etc
• The holding handle is made from aluminium and the bow string holder is comprised of spring steel.

How to use…
1. Tie a piece of cotton string form both ends (Not supplied).
2. Depending on the metal to be polishing select a bar of compound (See consumables > Compounds & Polishing Waxes for full range); simulate a sawing motion over the polishing bar. This will impregnate the cotton string with the polishing media.
3. Now replicate this sawing motion over the area the string can reach using this forward and backwards motion. Apply some pressure and the item will instantly achieve a polished mirror finish.

Overall length 30cm
Weight: 7g

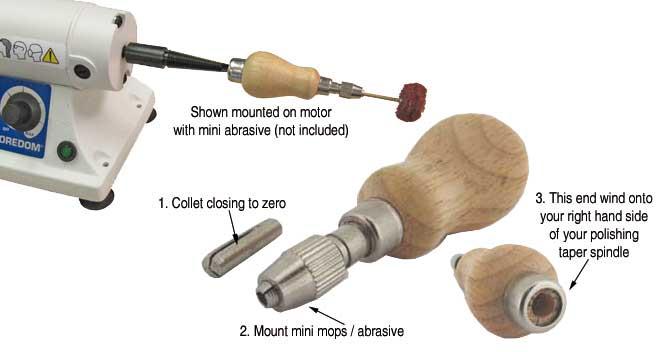

This tool is ideal if you have ever had difficulties drilling, polishing, grinding, etc in small areas because regular mops and abrasives are too large. This added on tool fits tapered spindles with ease. You now can mount a large variety of attachments like Mini Mops, Silicon Finishers and Mounted Roll Sanders/ Drum Sanders etc.

How it works…
1. This collet closes to zero and is particularly useful to mount finer drills, such as our smallest drill bit at 0.30mm (D2410). Grip the piece to be drilled with hand vice (V32161), for instance, then slowly drill out fine holes when casting flash has smeared the surface.
2. Attachments are easily changeable by screwing them off and on, the 3/32 or 2.35mm collet is also included with this unit.
3. The pin vice easily mounts onto a tapered spindle simply by screwing, the metal ring gives added strength when fixing and removing.

• Size: length 100m x diameter 35mm
• Weight: 40g

A valuable finishing aid that saves time and money

• Just wind on your polishing spindle, cut your abrasive paper in strips and wrap round and off you go
• Excellent for inside rings and bangles

Size: overall length 100mm
Taper length and slit 60mm- Diameter Ø13mm bottom – Ø7mm top
Mounting bore size 5mm

Weight: 15 grams
