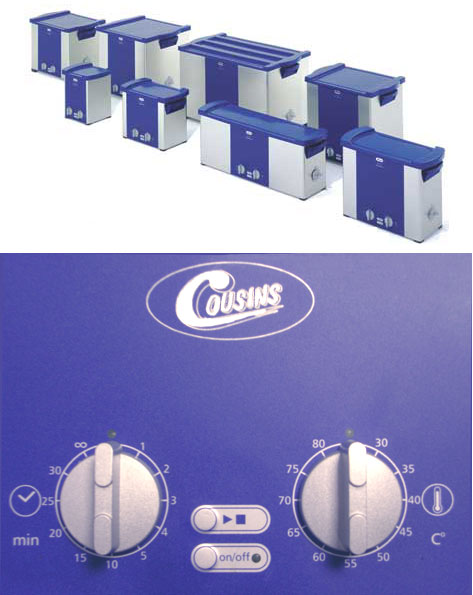

Ultrasonic Cleaning

The E - Line range of ultrasonic tanks from Elma are of all new design and incorporate useful new features like auto-start at a chosen temperature and auto heat power down if fluid level drops, plus a safety transducer cut out after 12hrs continuous usage. Lids on the E-Line are included and the range is best suited to light to medium soiling for unextended periods.

• Auto start at preselected temperature - with override
• Auto safety cut out after 12hrs continuous use
• Auto heat reduction if fluid level falls below minimum
• Auto sweep action - enhanced cleaning across all areas of the bath
• Heater & LED indicator
• Stainless steel tank chamber

Featuring latest technology and heaters (30-80°C) with ergonomic
design and improved efficiency on the E-Range keeps Elma’s name in
front in the ultrasonic cleaning field.

• Tank Internal Dimensions: Length x Width x Depth (LxWxD) Stainless Steel


Elma’s Principle UK Distributor

Elmasonic P
The new ultrasonic unit series; digital units most easy to operate

The units of the new Elmasonic series have even more features than the well-known Elmasonic S units.

The digital units are most easy to operate and show all relevant values simultaneously in one display,
such as preset cleaning time, remaining time, temperature and all other parameters.

The units are more powerful and can be operated at two different frequencies:
• 37kHz (as Elmasonic S) for standard cleaning jobs
• 80kHz for very difficult cleaning items.
Difficult items in particular, tiny holes and clearances are reached by the ultrasound and
thoroughly cleaned (e.g. clearances between stone and setting on jewellery).
A beautiful side effect of the high frequency is its virtually silent operation.

Coarse cleaning jobs require the 37kHz frequency, for fine cleaning jobs the silent 80kHz
frequency can be chosen.

In the event of a required power increase, the operator can activate "Pulse". This function
increases the peak power and so removes even tenacious contaminations.

- Elmasonic P represents Elma's most universally applicable and technically best-featured series.
• Degas • Sweep • Pulse

• Tank Internal Dimensions: Length x Width x Depth (LxWxD) Stainless Steel


Elma’s Principle UK Distributor

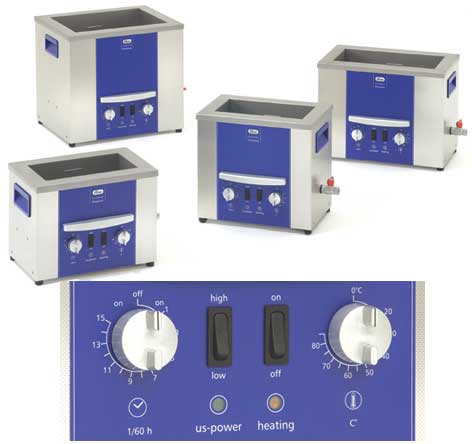

The Elma X-Tra Ultrasonic range of tanks provide that ‘extra’ optimum durability under prolonged and heavy usage.
They all feature switchable frequency (intensity) according to job, have very powerful transducers – employing the sweeping action to maximise penetration of cavitation process, plus rapid
variable control heaters and drain off cocks.
Very robust tanks for busy and demanding applications.

• Tank Internal Dimensions: Length x Width x Depth (LxWxD) Stainless Steel


Elma’s Principle UK Distributor

Due to its performance capacity, the sandwich transducer removes heavy substances without scratching surfaces, cleaning
where liquid can permeate, even in joints and splits which makes it well suited for watches, bracelets, watch cases, jewellery, spectacles, etc.
Only to be used with Elma recommended fluid ref. F9220.

• Mains Voltage: 90 to 250 VAC-50/60Hz
• Splash water protection: Overheating protection
• Digital user interface 1 to 120 minutes remaining timing display
• Inner dimensions: 194L x 84W x 60H mm
• Outer dimensions: 236L x 144W x 157H mm
• Tank filling volume: max 0.8 litres
• Weight: 1.6 kg.
• Ultrasonic frequency: approx. 35 Khz
• Tank material: Stainless stee
• Inner basket dimensions: 178L x 80W x 47H mm.


Elma’s Principle UK Distributor
